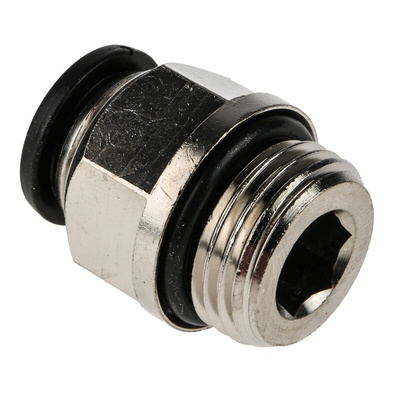

RS PRO Push-in Fitting, G 1/2 Male to Push In 12 mm, Threaded-to-Tube Connection Style, Прямой фитинг

RS PRO Straight Threaded Adaptor, G 1/2 Male to Push-In 12 mm, 20 bar

Use this straight adaptor from RS PRO to achieve a tight fit in your automation control systems. It's made of nickel-plated brass and has nitrile butadiene rubber (NBR) seals integrated into the component, so it's suitable for high vibration applications like heavy-duty packaging processes.
The component's 'universal short' threading reduces the overall length of your piping, so the connector works well for compact systems. The threads have a convex-concave shape so they can mate with both tapered and straight female parts with ease. To achieve a tight fit, all you need is an Allen wrench. This makes connection and disconnection quick and simple.
This unit is silicone-free, so it's suitable for assembly units that involve adhesive bonding, coating and wire bonding processes. It's also typically used in vacuum control and compressed air circuit systems. The part also meets Restriction of Hazardous Substances (RoHS) standards, which means it contains only minimal amounts of harmful materials.

Features and Benefits

• Brass body material
• Straight threaded adaptor
• Connector A is a male G 1/2 type
• Connector B is a 12 mm push-in type
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Inline mounting type
• Standards met include Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) 1907/2006, International Organisation of Standardisation (ISO) 14743:2004 and Pressure Equipment Directive (PED) 2014/68/UE
