RS PRO Push-in Fitting, G 1/2 Male to Push In 10 mm, Threaded-to-Tube Connection Style, Прямой фитинг

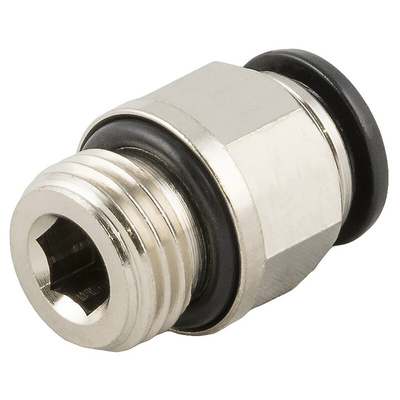

RS PRO Straight Threaded Adaptor, G 1/2 Male to Push-In 10 mm, 20 bar

Choose this straight adaptor from RS PRO for leak-free and stable connections for your pneumatic system. The push-in fitting comes with a sealing ring on one side and threads on the other side, so it's quick and easy to connect and doesn't require any special tools.
The connector is made of nickel-plated brass, so you can be sure of long-lasting service without any risk of rust or corrosion. A stainless steel washer ensures the mating male and female components achieve a secure fit. This means it's handy for use in packaging systems, where high levels of vibration occur.
This unit is lightweight and compact, which makes it suitable for modular automation systems too. It's also silicone-free, so you can use it in no-contamination manufacturing units like soldering, special packaging or coating facilities.

Features and Benefits

• Brass body material
• Straight threaded adaptor
• Connector A is a male G 1/2 type
• Connector B is a 10 mm push-in type
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Inline mounting type
• Standards met include Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) 1907/2006, International Organisation of Standardisation (ISO) 14743:2004 and Pressure Equipment Directive (PED) 2014/68/UE
