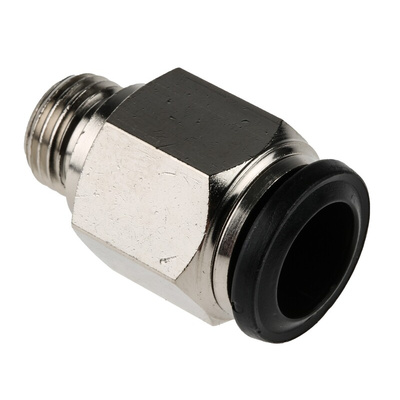

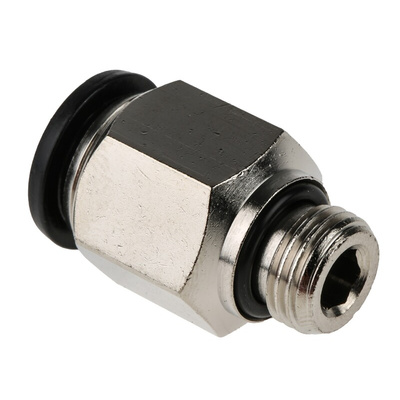

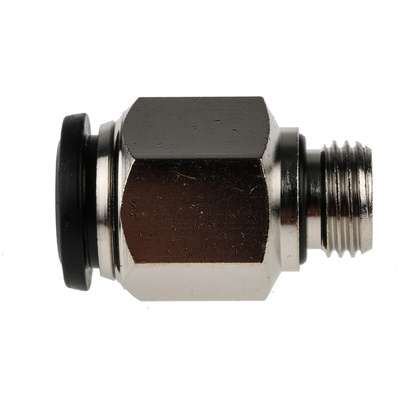

RS PRO Push-in Fitting, G 1/4 Male to Push In 12 mm, Threaded-to-Tube Connection Style, Прямой фитинг

RS PRO Straight Threaded Adaptor to G 1/4 Male to Push-In 12 mm 20 bar

Need a leakproof connector for your pneumatic system? Turn to these versatile adaptors from RS PRO which can handle operating pressures in the range of -0.99 to 20 bar. They're made from nickel-plated brass, so they're a durable choice for tough industrial environments.
All you need is an Allen wrench to install these push-in adaptors, so they're quick and simple to use. The concave shape of the threads on each connector allows it to make tight connections with both tapered and parallel-threaded female components. The design features high-quality nitrile butadiene rubber (NBR) seals to enhance durability and keep contaminants at bay.
Since these products are silicone-free, they're safe to use in manufacturing environments with strict no-contamination policies, such as in soldering and coating units. Connectors like these are typically used in compressed air circuits and vacuum systems.

Features and Benefits

• Brass body material
• Threaded-to-tube connection style
• Connector A is a male G 1/4 type
• Connector B is a male push-in 12 mm type
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Inline mounting type
• Straight threaded adaptor pneumatic fitting type
• Standards met of 1907/2006 (REACH), ISO 14743:2004, PED 2014/68/UE
