RS PRO Push-in Fitting, Push In 10 mm to Push In 10 mm, Tube-to-Tube Connection Style, Переходник

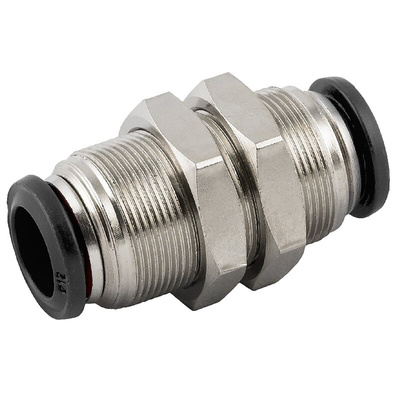

RS PRO Bulkhead Tube-to-Tube Adaptor to Push-In 10 mm to Push-In 10 mm 20 bar

Make pneumatic connections in modular systems quick and easy with these push-in connectors from RS PRO. Each one has a collet and threading on both sides to achieve a tight tube-to-tube seal. The simple push-in design makes it straightforward to ensure a solid, leak-free connection without the need for any special tools.
The threadings on these connectors are a special concave shape, which means they mate with parts that aren't perfectly flat. The 'Universal Short' thread reduces the overall length of your tubing so they work well in applications with space constraints, such as in portable units.
The stainless steel washer integrated into the design of each component ensures the coupling maintains a secure fit even in tough conditions with high vibrations and impact forces. Adaptors like these are commonly used in heavy-duty packaging equipment, textile machinery and vacuum systems.

Features and Benefits

• Brass body material
• Tube-to-tube connection style
• Connector A is a 10 mm push-in type
• Connector B is a 10 mm push-in type
• Nickel-plated finish
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Bulkhead tube-to-tube adaptor pneumatic fitting type
• Brass thread material
