RS PRO Push-in Fitting, Push In 12 mm to Push In 12 mm, Tube-to-Tube Connection Style, Фитинг

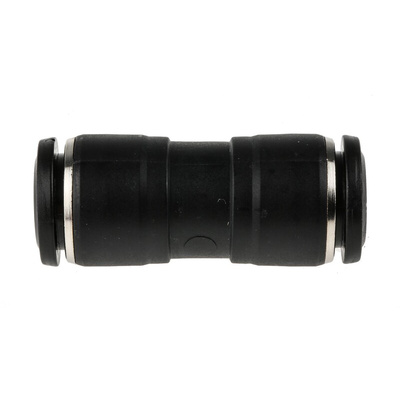

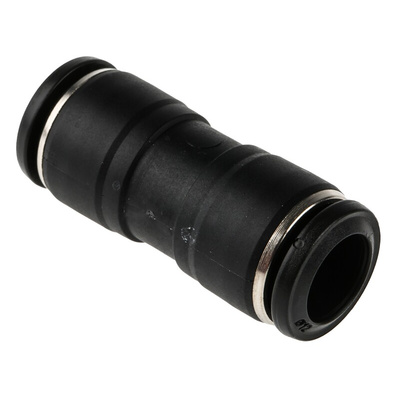

RS PRO Straight Tube-to-Tube Adaptor, Push-In 12 mm to Push-In 12 mm, 20 bar

You can use these RS PRO tube-to-tube adaptors to join together two segments of tubing in your pneumatics systems They're designed for simple push-in assembly on either end, which creates a firm seal.
These adaptors are made from a strong technopolymer material for improved reliability. This also makes them lightweight and compact. As they have a maximum operating pressure of 20 bar, they can be used in the most demanding pneumatics systems.
These products are appropriate for a wide range of different environments, both indoors and outdoors, because they're capable of operating effectively in temperatures from -20°C to +80°C. They're particularly suited to robotics and other automation applications, as well as being an effective solution for packaging industries.

Features and Benefits

• Tube-to-tube connection style
• Connector A is a 12 mm push-in type
• Connector B is a 12 mm push-in type
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Straight tube-to-tube adaptor pneumatic fitting type
