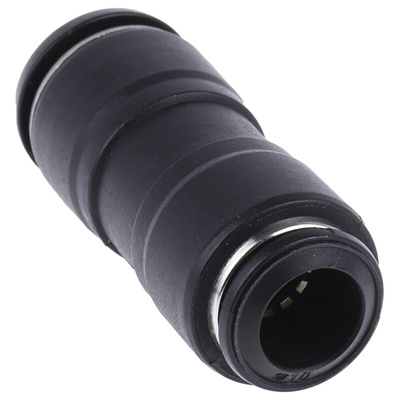

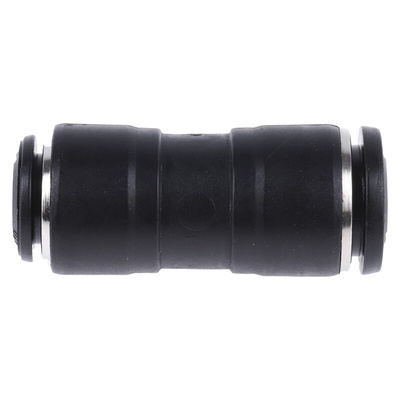

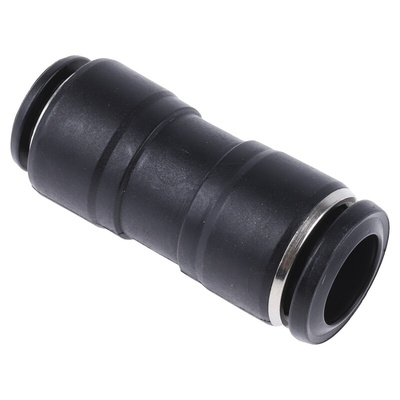

RS PRO Push-in Fitting, Push In 12 mm to Push In 10 mm, Tube-to-Tube Connection Style, Фитинг

RS PRO Straight Tube-to-Tube Adaptor, Push-In 12 mm to Push-In 10 mm, 20 bar

Link together two sections of tubing with these RS PRO tube-to-tube adaptors. They're specifically designed for compressed air applications and they allow you to set up connections in a straight line. You can simply push the tubes into the adaptors to join them, making installation easy.
These are strong, reliable adaptors as they're made from an advanced technopolymer material. This also means they're not too heavy or bulky, which allows for easy transportation. You can use these effectively at a minimum temperature of -20ºC and a maximum temperature of +80ºC, so they're ideal for harsh environments both indoors and outdoors.
These products have a maximum operating pressure of 20 bar so they're used in the most demanding pneumatics installations. You'll find them in robotics and other automated systems, as well as in the packaging industry.

Features and Benefits

• Tube-to-tube connection style
• Connector A is a 12 mm push-in type
• Connector B is a 10 mm push-in type
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Straight tube-to-tube adaptor pneumatic fitting type
