RS PRO Push-in Fitting, Push In 10 mm to Push In 6 mm, Tube-to-Tube Connection Style, Фитинг

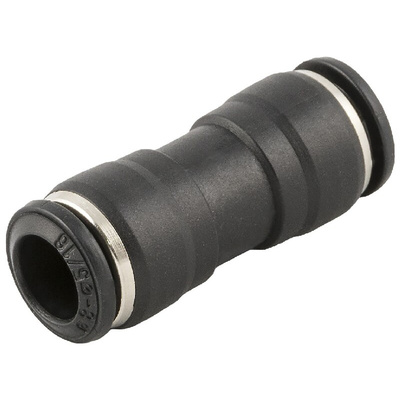

RS PRO Straight Tube-to-Tube Adaptor, Push In 10 mm to Push In 6 mm, 20 bar

Establish firm connections in a straight line with these RS PRO tube-to-tube adaptors. They're designed to join together two segments of pneumatic tubing. You can simply push the tubes into either end for quick assembly and they can be removed just as easily.
As they're made from an advanced technopolymer material, these products have a good level of strength. This means they should last for a long time before they need replacing. You can use these in temperatures from -20°C to +80°C, so they're ideal for a wide variety of environments, both outdoors and indoors.
Each adaptor's maximum operating pressure of 20 bar means they can be used in the most demanding pneumatics systems. They're particularly suited to robotics and other automation applications but are also an effective solution in the textiles and packaging industries.

Features and Benefits

• Tube-to-tube connection style
• Connector A is a 10 mm push-in type
• Connector B is a 6 mm push-in type
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Straight tube-to-tube adaptor pneumatic fitting type

RS PRO Datasheet

Pneumatic Linecard

RS PRO Pneumatics Range Overview
