RS PRO Push-in Fitting, R 1/4 Male to Push In 12 mm, Threaded-to-Tube Connection Style, Угловой фитинг

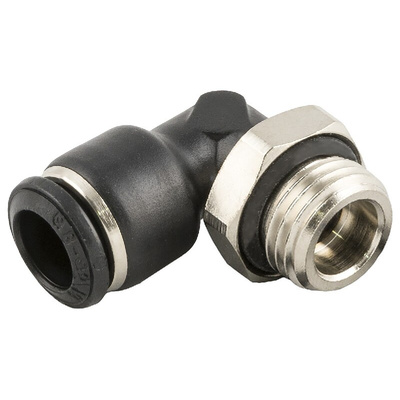

RS PRO Elbow Threaded Adaptor, R 1/4 Male to Push In, 12 mm 20 bar

If you need to join together two sections of tubing at right angles, these RS PRO elbow adaptors are an ideal solution. They're specifically designed for compressed air systems and have push-in ends, which let you establish secure connections with compatible tubes.
The main body of these products is made from a lightweight technopolymer material that has excellent strength for improved reliability. Each adaptor's thread is made from brass, which is durable and resistant to corrosion. A broad operating temperature range of -20ºC to +80ºC means these adaptors can be used in a variety of demanding applications, both indoors and outdoors.
These components are suitable for industrial water plants, automotive workshops and the packaging industry. They conform to 1907/2006 REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) standards, indicating that they've been tested for material safety.

Features and Benefits

• Angle of 90º
• Threaded-to-tube connection style
• Connector A is a male R 1/4 type
• Connector B is a 12 mm push-in type
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Elbow threaded adaptor pneumatic fitting type
• Swivel connection
• Brass thread material
• R 1/4 male threaded connection
• Push-in 12 mm tube connection
• Standards met of 1907/2006 (REACH), ISO 14743:2004, PED 2014/68/UE
