RS PRO Push-in Fitting Push In 10 mm, Push In 10 mm to Push In 10 mm, Tube-to-Tube Connection Style, Фитинг

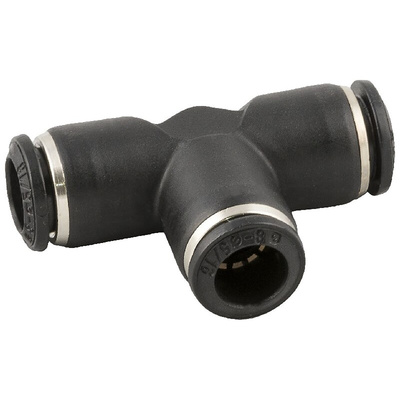

RS PRO Tee Tube-to-Tube Adaptor, Push-In 10 mm to Push-In 10 mm to Push-In 10 mm, 20 bar

These RS PRO tee adaptors let you join together two or three different sections of tubing in your pneumatics systems. Their 'T' shape makes them suitable for right-angled and straight-line arrangements. All three of the connectors in each adaptor are designed for simple push-in assembly, so you can set up and remove connections without the need for tools.
These products are strong and lightweight as they're constructed from advanced technopolymer material. This also makes them reliable and versatile. In addition to this, their operating temperature range of -20ºC to +80ºC means they will function effectively in a variety of environments, from power plants to laboratories.
These adaptors can handle pressures of up to 20 bar, so they're ideal for the most demanding compressed air applications. Use them in robotics and other automated systems, as well as industrial water pumps and the textiles industry.

Features and Benefits

• Push-in 10 mm branch connector
• Push-in 10 mm branch tube connection
• Tube-to-tube connection style
• Connector A is a 10 mm push-in type
• Connector B is a 10 mm push-in type
• Maximum operating pressure of 20 bar
• Operating temperature of -20°C to +80°C
• Tee tube-to-tube adaptor pneumatic fitting type
• Standards met of 1907/2006 (REACH), ISO 14743:2004, PED 2014/68/UE
