RS PRO Push-in Fitting Push In 12 mm, Push In 12 mm to Push In 12 mm, Tube-to-Tube Connection Style, Фитинг

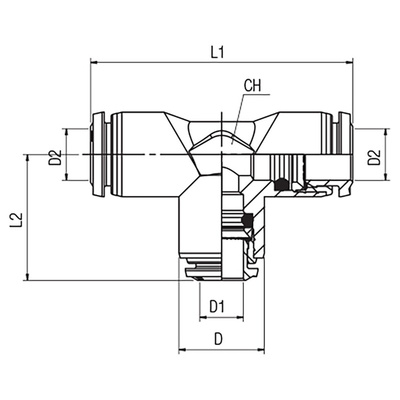

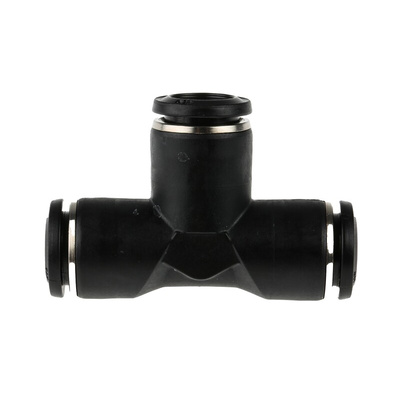

RS PRO Tee Tube-to-Tube Adaptor, Push-In 12 mm to Push-In 12 mm to Push-In 12 mm, 20 bar

Setting up a compressed air system? These tee adaptors from RS PRO are a simple and effective solution for joining two or three sections of tubing. Their 'T' shape allows you to make connections both at right angles and in a straight line. They have a simple push-in assembly that lets you quickly vacuum-seal your system without any additional tools.
These adaptors have a maximum operating pressure of 20 bar, so they're suitable for the most demanding pneumatics applications. They're made from a technopolymer material, so each one is strong enough to give you a good level of reliability without being too bulky or heavy.
Thanks to their broad operating temperature range of -20ºC to +80ºC, these products can be used in a variety of environments, both indoors and outside. You'll see them in robotics applications, automotive systems and industrial water pumps.

Features and Benefits

• Connector A is a 12 mm push-in type
• Connector B is a 12 mm push-in type
• Push-in branch tube-to-tube connections
• Maximum operating pressure of 20 bar
• Tee tube-to-tube adaptor pneumatic fitting type
• Operating temperature range of -20°C to +80°C
• Standards met include 1907/2006 (REACH), ISO 14743:2004, PED 2014/68/UE
