RS PRO Push-in Fitting, Push In 10 mm to Push In 6 mm, Tube-to-Tube Connection Style, Фитинг

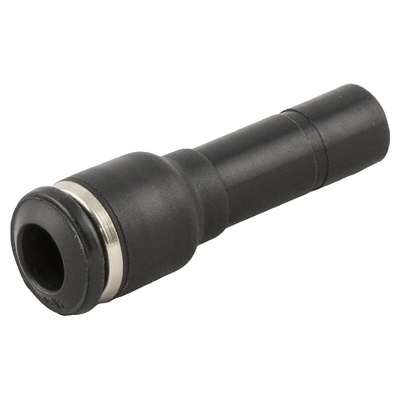

RS PRO Straight Tube-to-tube Adaptor, Push-in 10 mm to Push-in 6 mm, 20 bar

Join together two sections of tubing in a straight line with this RS PRO adaptor, which is made for compressed air systems. Its ends enable simple push-in connections, so you can assemble and seal your pneumatics equipment quickly without the need for additional tools.
The product is made from a technopolymer material that's both strong and lightweight. This will give your equipment a long lifespan and a good level of efficiency, without making it too bulky. It's also silicone-free to reduce the risk of structural defects and improve reliability.
This adaptor can handle the most demanding pneumatics applications, with a high maximum operating pressure of 20 bar. It can be used in a temperature range of -20ºC to +80ºC, making it suitable for a wide variety of environments. You'll find this component in robotics, as well as industrial water pumps and packaging machinery.

Features and Benefits

• Tube-to-tube connection style
• Connector A is a 10 mm push-in type
• Connector B is a 6 mm push-in type
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Straight tube-to-tube adaptor pneumatic fitting type
