10350-52A0-008, 3M 103 Series Polymer D Sub Backshell, 50 Way, Strain Relief

3M Plastic Backshells

From 3M, this range of the 103 Series .050" Mini Delta Ribbon (MDR) Connectors Plastic Solder Plug Junction Shell - Non Shielded Backshells are available with Screw or Quick Release Latching Mechanism. The design of the 103 Series MDR Junction Shell features a two-piece glass reinforced Backshell with Ground Strap and a metal Strain Relief Clamp

Features and Benefits

• Straight exit for round cables
• Compatible with 101XX-3000PE Plug
• Metal strain relief clamp provides grounding for cable shield

Options

• 103xx-52F0-xxx = Quick Release Latching Mechanism
• 103xx-52A0-xxx = Jack Screw

Applications

This D-Sub connector is designed to be used with round ribbon cables and can be easily terminated to the cable. As part of a complete cable system, they are often used in internal and external wiring in electronic devices, particularly in computing and robotics.

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

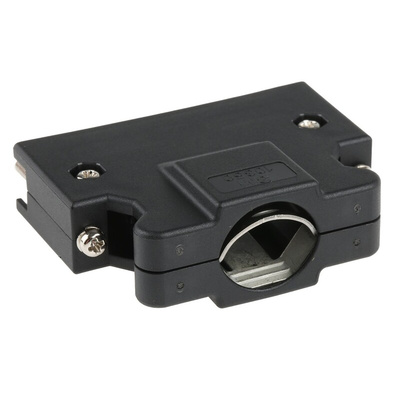

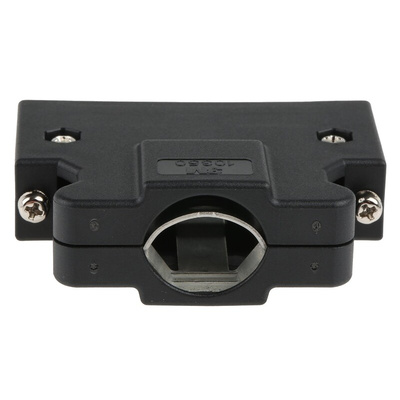

3M D-Sub Backshell, Straight Body, 50 Way - 103 Series - 10350-52A0-008

This D-sub backshell from 3M offers a practical electromagnetic interference (EMI) shielding solution to ensure the top performance of your electronic applications. It's a plastic casing that houses round-ribbon D-sub connectors for internal and external wiring and connection purposes. You can rely on it to protect connections against mechanical, electronic and environmental stress, such as radio frequency interference and vibrations. Use this D-sub backshell with screw release to stabilise your connectors for reliable and safe performance.

• Ground strap promotes safety by grounding live current to protect against power surges that cause electric shocks and damage• Polymer casing doesn't conduct electricity or heat and effectively insulates live connections to prevent component damage• Strain-relief clamp safeguards wires against damage from pulling or stretching

Applications

• Domestic and industrial computing applications• Robotics in automated manufacturing lines

What are the benefits of using a polymer instead of a metal D-sub backshell?

A polymer junction shell is lighter than a metal junction shell and prevents unnecessary drag on your more delicate electronic appliances. It's also a corrosive-resistant option that won't rust, which means it needs less maintenance.

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.
