RS PRO Hose Connector Hose Tail Adaptor, BSPT 1/2in 16mm ID, 5 MPa, 50 bar

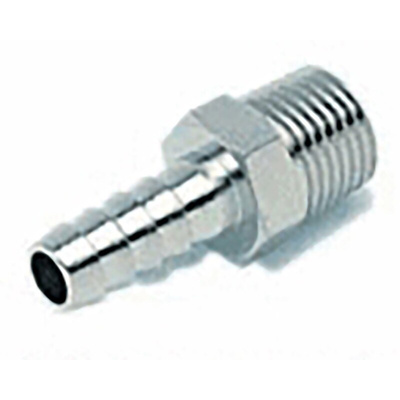

RS PRO Straight Brass Hose Connector, 1/2 in BSPT Male, 5 MPa, 50 bar

This hose connector from RS PRO is an ideal choice for making hose connections in challenging industrial environments. It's made from nickel-plated brass for maximum corrosion resistance and can withstand extremes of temperature right up to +300˚C and pressures of up to 50 bar. This rugged quality assures you a long service life, even in harsh settings.
The connector offers superb mechanical resistance and is suitable for use with fluids of all kinds, including compressed air, inert gases and steam. It's fitted with a serrated tail that pushes easily into a hose for a secure connection and has a male thread on the other end for you to screw into the device of your choosing. A hex nut allows you to tighten or loosen it with a spanner.
These hose connectors are supplied in packs of 10. Components such as these are commonly used in industrial water circuits, vacuum systems and pneumatic automation.

Features and Benefits

• Brass body
• Male connector
• Straight coupling type
• Inner hose diameter of 16 mm
• Maximum working pressure of 5 MPa
• Thread size of 12.7 mm
• Male threaded connection of 1/2 in BSPT (British Standard Pipe Taper)
