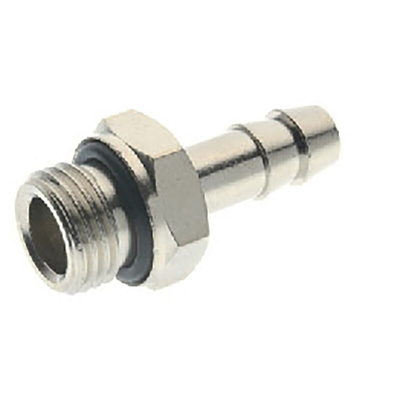

RS PRO Hose Connector Hose Tail Adaptor, BSPP 1/4in 6mm ID, 5 MPa, 50 bar

RS PRO Straight Brass Hose Connector, 1/4 in BSPP Male, 5 MPa, 50 bar

This hose connector from RS PRO is ideal for use in challenging industrial environments. It's made from nickel-plated brass, which makes it highly resistant to corrosion.
The connector can withstand pressures of up to 50 bar and temperatures up to +300˚C while offering great mechanical resistance. It can be used with all kinds of fluids, including compressed air, inert gases and steam. To use, simply push the connector's serrated tail into the hose to make a secure join. Then, screw the other end, which is a threaded connection of constant diameter, into your application of choice.
These hose connectors are supplied in packs of 10. They come with a three-year warranty for peace of mind. Components such as these are commonly used in industrial water circuits, as well as in vacuum systems and pneumatic automation.

Features and Benefits

• Brass body
• Male connector and male thread
• Straight coupling type
• Inner hose diameter of 6 mm
• Maximum working pressure of 5 MPa, 50 bar
• Thread size of 6.35 mm
• Threaded connection of 1/4 in BSPP (British Standard Parallel Pipe)
