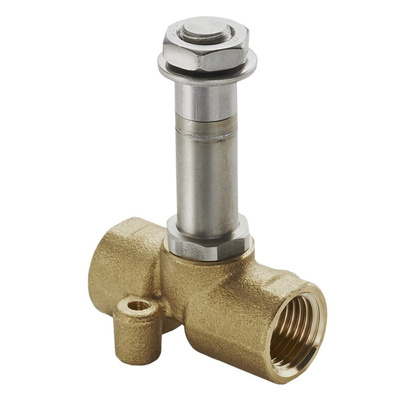

RS PRO Solenoid Valve, 2 port(s) , NC, 1/4in, Клапан

RS PRO Solenoid Valve, 2 port, NC, 1/4 in

This solenoid valve from RS PRO connects to your gas or liquid system, regulating the flow rate. It uses electromagnetic force to achieve this, so it has a low power consumption to keep your system energy efficient.
The valve remains functional from -10°C to +90°C, making it suitable for harsh industrial environments. Its brass body is highly resistant to corrosion so the valve will withstand heavy usage even in damp conditions.
The valve has a 40 bar maximum pressure rating so it gives you a lot of force for driving out the gas or liquid your system uses. Its female gender connection secures with all G thread products meaning it's a versatile product.

Features and Benefits

• Brass body material
• Connection of 1/4 in
• G-series female
• Female connection gender
• Connection size of 1/4 in
• Normally closed default valve position
• Flow factor (Kv) of 0.15 m³/h
• Maximum operating temperature of +90°C
• Maximum working pressure of 40 bar
• Minimum operating temperature of -10°C
• Two ports
• Solenoid operation
• Orifice diameter of 2.5 mm
• G thread standard or connection type
