RS PRO Solenoid Valve, 2 port(s) , NO, 1/4in, Клапан

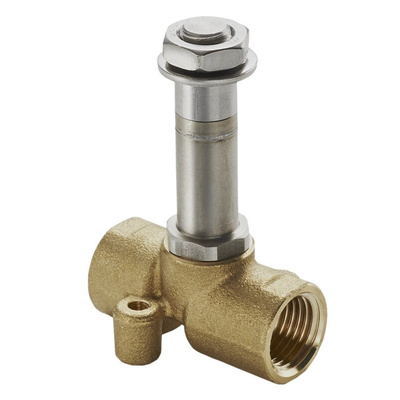

RS PRO Solenoid Valve, 2 port, NO, 1/4 in

This normally open (NO), two-port solenoid valve from RS PRO controls the flow of gas or liquid in your pressure system. It uses electromagnetic force which is energy-efficient and reduces waste, increasing product longevity.
The valve's brass body is corrosion-resistant to prevent it from wearing out and rusting. It's able to function between -10°C and +90°C so the majority of gases or liquids work with this product.
The pressure in this valve can go up to 40 bar, allowing the gas or liquid in your system to reach high levels of force when needed. It conforms to the internationally recognised G thread product standard so it has the versatility to connect many products around the world.

Features and Benefits

• Brass body material
• Connection of 1/4 in
• G-series female
• Female connection gender
• Connection size of 1/4 in
• Normally open default valve position
• Flow factor (Kv) of 0.09 m³/h
• Maximum working pressure of 40 bar
• Maximum operating temperature of +90°C
• Minimum operating temperature of -10°C
• Two ports
• Solenoid operation
• Orifice diameter of 2 mm
• G thread standard or connection type
