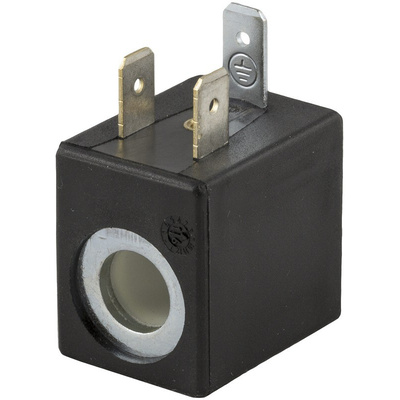

RS PRO 110 V dc, 220 V ac Solenoid Valve Coil, Клапан

RS PRO 22mm Solenoid Valve (220V DC/ 110 V DC)

An essential component of solenoid valves the RS PRO solenoid valve coil is designed to regulate the liquid and gas flow in pressure systems by converting electrical into magnetic energy activating the valve.
Constructed with a robust Brass body resistant to impact and corrosion and a strong Stainless Steel core and spring that with provide years of reliable service.
With a maximum pressure of 40 bar and a temperature range from -10°C right up to +80°C the solenoid valve coil is powerful and can withstand rises and drops in temperature during operation resulting in a hardwearing professional solenoid coil fit for harsh conditions

Features and Benefits

• Solenoid valve coil (solenoid operation)


• Continuous operation (100% ED)


• Size of 22mm


• 10.2mm connection


• Dimensions of 29.5 x 27.8


• Maximum working pressure of 40 bar


• Supply voltage of 220V AC/ 110V DC


• Voltage tolerance of ±10 %


• Rating of 7.5VA


• Brass body material


• Stainless Steel spring, tube and core


• IP65 rated


• Isolation class H


• Minimum operating temperature of -10°C


• Maximum operating temperature of +80°C

Standards and Approvals: DIN 43650, CEI EN 60085
