RS PRO 5/2 Bistable Pneumatic Solenoid Valve - Pneumatic G 1/8, Клапан

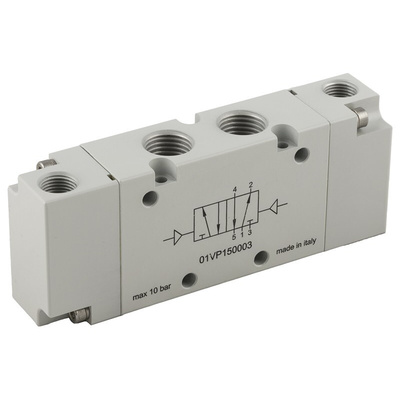

RS PRO 5/2 Bistable Pneumatic Solenoid Valve - G 1/8

This energy-efficient RS PRO pneumatic solenoid valve controls the movement of air through your pneumatic circuits via connection to an electrical system. The easy-to-use, versatile unit supports electrical, pneumatic and manual control, giving you a range of options for operation.
This valve is bistable, meaning it holds its current position – either open or closed – until you apply the electrical, pneumatic or manual signal again. Because it doesn't require continuous current to maintain a certain function, this valve is a good choice for when you need to keep energy consumption low.

Features and Benefits

• Pneumatic actuation type
• Aluminium body material
• 44232 port thread configuration
• G 1/8 connection port thread size
• 5/2 Bistable function
• Maximum flow rate of 740 NL/min
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 1 bar
• Operating temperature range of -10°C to +60°C
• Base mounting style
• Two port positions
