RS PRO 5/2 Bistable Pneumatic Solenoid Valve - Pneumatic G 1/4, Клапан

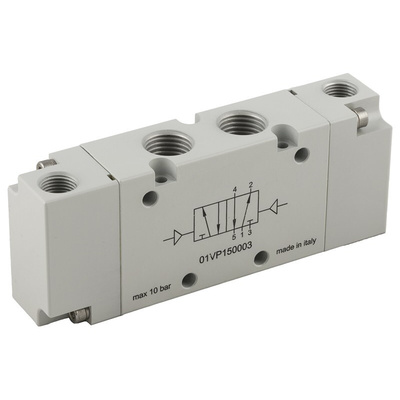

RS PRO 5/2 Bistable Pneumatic Solenoid Valve, G 1/2

This bistable solenoid valve from RS PRO is an energy-efficient way to control the flow of air or gas through your pneumatic system. It will hold its current position – either open or closed – until it receives another electric signal. This means it doesn't require continuous current to remain in one position, saving you money and reducing your energy consumption.
This valve has a manifold base mount, so you can install it as part of a hub with multiple pipes branching off. It has five ports and two positions, so it can direct the flow of air or gas in several directions while keeping one outlet available for use as an exhaust.

Features and Benefits

• Pneumatic actuation type
• Aluminium body material
• 44232 port configuration
• G 1/4 connection port thread size
• 5/2 bistable valve function
• Maximum flow rate of 1200 NL/min
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 1 bar
• Operating temperature range of -10°C to +60°C
• Base mounting style
• Two positions
