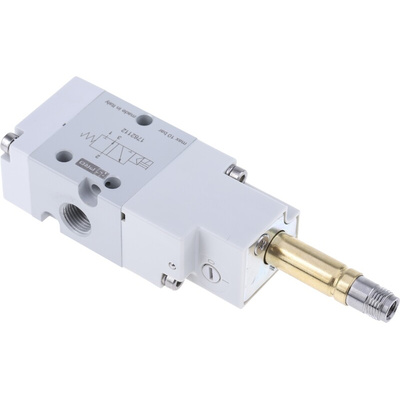

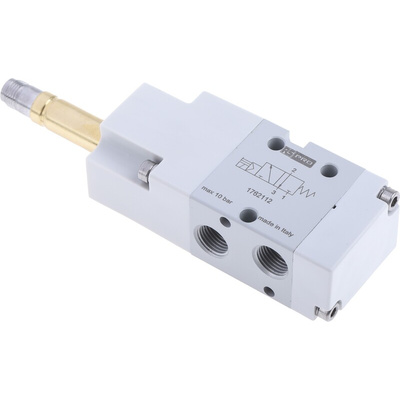

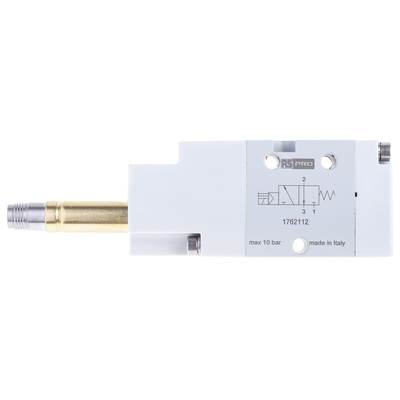

RS PRO 3/2 NC Pneumatic Solenoid Valve - Solenoid G 1/8 12 V dc, 24 V ac/dc, 110 V ac, 220 V ac, Клапан

RS PRO 3/2 Normally Closed Pneumatic Solenoid Valve, G 1/8, 12 V DC, 24 V AC/DC, 110 V AC, 220 V AC

This solenoid valve from RS PRO uses an electric current to permit the flow of air or gas through a pneumatic system. It has a quick response time, so you can release built-up pressure rapidly, and low energy usage to save you money and reduce your environmental impact.
This valve is in the 'closed' position by default, preventing gas or air from flowing through until you apply an electric current to the solenoid coil. This makes the unit well-suited for use as a safety valve, operating as an emergency release for the pneumatic system if the pressure builds up to dangerous levels.

Features and Benefits

• Solenoid actuation type
• Aluminium body material
• 4423G port configuration
• G 1/8 connection port thread size
• 3/2 normally closed function
• Maximum flow rate of 740 Nl/min
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 2 bar
• Operating temperature range of -10°C to +60°C
• Base mounting style
• Three ports
• Single position
• Solenoid fitted
• Solenoid power consumption of 2 W, 3 VA
• Solenoid voltage of 12 V DC, 24 V AC/DC, 110 V AC, 220 V AC
