RS PRO 3/2 NC Pneumatic Solenoid Valve - Solenoid G 1/4 12 V dc, 24 V ac/dc, 110 V ac, 220 V ac, Клапан

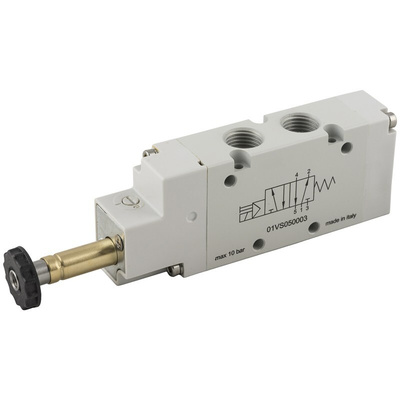

RS PRO 3/2 Normally Closed Pneumatic Control Valve Solenoid G 1/4 in

If you're looking for a pneumatic control valve to control airflow in a pneumatic system, this 3/2 valve from the RS PRO range is both robust and versatile. It's configured with three ports and two switching positions, with normally closed operation requiring activation from a solenoid to open it.

Designed for base mounting, this solenoid valve is built with a lightweight yet strong aluminium body. It fits onto a G 1/4 in thread and can handle a flow rate of 1,200 litres a minute. This valve also offers a short changeover time and low changeover pressure.

The solenoid is remarkably energy-efficient and consumes just 2 W of power or 3 VA of apparent power. This kind of valve is commonly used in packaging applications as well as in the chemical and pharmaceutical sectors.

Features and Benefits

• Pneumatic control valve
• G 1/4 in connection port thread
• 3/2 configuration – three ports and two positions
• Normally closed operation
• Base mounting
• Solenoid actuation
• Comes with solenoid fitted
• Solenoid voltage of 12 V DC, 24 V AC/DC, 110 V AC, 220 V AC
• Solenoid power consumption of 2W, 3 VA
• Maximum flow rate of 1,200 L/min
• Maximum operating temperature of +60˚C
• Minimum operating temperature of -10˚C
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 2 bar
• Aluminium body
• Thread size of 6.35 mm
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
