RS PRO 5/2 Monostable Pneumatic Solenoid Valve - Solenoid G 1/8, Клапан

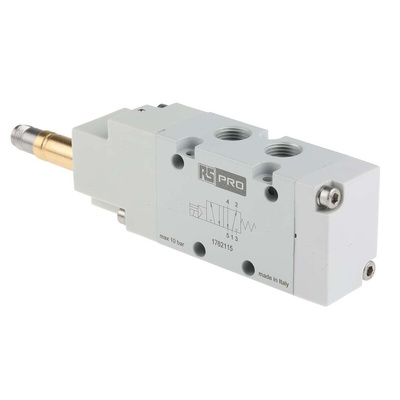

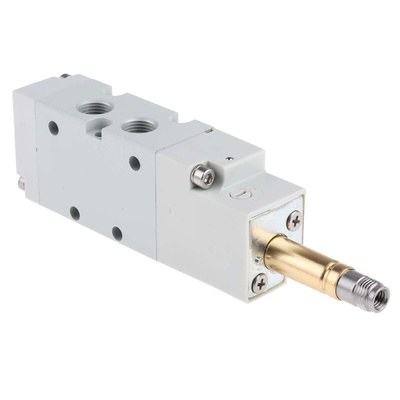

RS PRO 5/2 Monostable Pneumatic Control Valve Solenoid G 1/8 in

If you need to control airflow in a pneumatic system, this monostable pneumatic control valve from RS PRO is a versatile and sturdy combination of high performance and compact size. Its 5/2 configuration means it has five ports and two switching positions – a valve type commonly used to control double-acting cylinders. Typical applications include robotics, packaging and textile manufacture.

Its aluminium body means this valve is suitable for base mounting. A spring holds the valve in its home position until activation by the solenoid, which has an energy-efficient coil. It fits onto a standard G 1/8 in thread and offers a flow capacity of 740 litres a minute, as well as a short changeover time and low changeover pressure.

Features and Benefits

• Pneumatic control valve
• G 1/8 in connection port thread
• Thread size of 3.175 mm
• 5/2 configuration – five ports and two positions
• Monostable function
• Base mount
• Solenoid/spring actuation
• Solenoid power consumption of 2 W, 3 VA
• Maximum flow rate of 750 L/min
• Maximum operating temperature of +60˚C
• Minimum operating temperature of -10˚C
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 2 bar
• Aluminium body
• Solenoid is not provided
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
