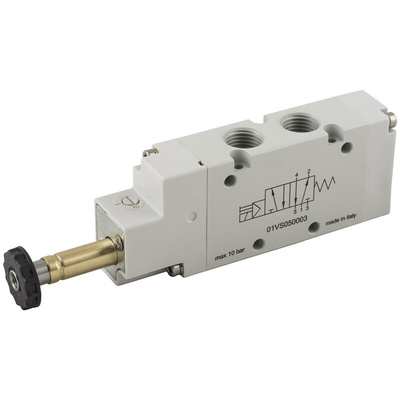

RS PRO 5/2 Monostable Pneumatic Solenoid Valve - Solenoid G 1/2 12 V dc, 24 V ac/dc, 110 V ac, 220 V ac, Клапан

RS PRO 5/2 Monostable Pneumatic Solenoid Valve, G 1/2 12 V DC, 24 V AC/AC, 110 V AC, 220 V AC

This monostable solenoid valve from RS PRO uses both compressed air and electromagnetic actuation to regulate the movement of gas or liquid through your pneumatic system. It features international standard G port threads, making this a versatile product you can use with a wide range of common fittings.
This valve is lightweight, thanks to its aluminium body, so it won't put excess stress on your system framework once installed. The material is also highly resistant to corrosion, so the valve will withstand heavy use without deteriorating over time.

Features and Benefits

• Solenoid actuation type
• 44232 port configuration
• G 1/2 connection port thread size
• 5/2 monostable function
• Maximum flow rate of 5000 NL/min
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 2 bar
• Operating temperature range of -10°C to +60°C
• Base mounting style
• Five ports
• Single position
• Solenoid fitted
• Solenoid power consumption of 2 W, 3 VA
• Solenoid voltage of 12 V AC, 24 V AC/DC, 110 V AC, 220 V AC
