RS PRO 5/3 CC Pneumatic Solenoid Valve - Solenoid G 1/4 12 V dc, 24 V ac/dc, 110 V ac, 220 V ac, Клапан

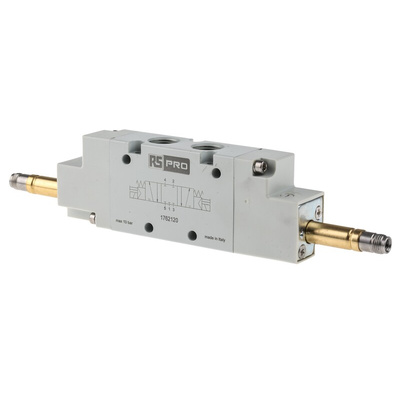

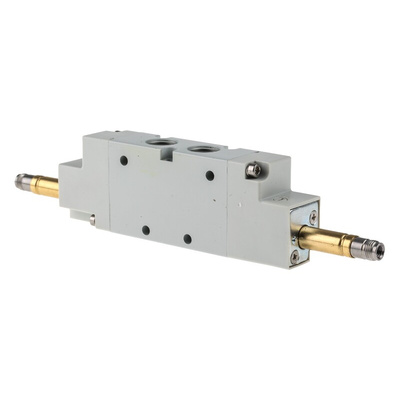

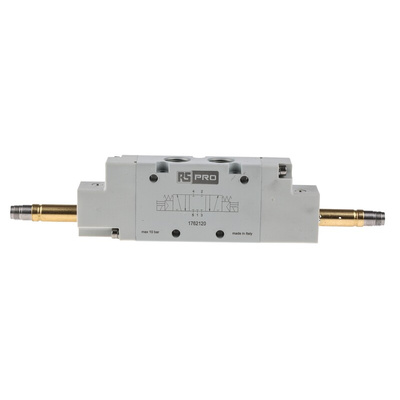

RS PRO 5/3 Normally Closed Pneumatic Solenoid Valve, G 1/4 12 V DC, 24 V AC/DC, 110 V AC, 220 V AC

Go for this pneumatic solenoid valve from RS PRO when you need a versatile and efficient way to manage liquid or gas flow in your pipework. It opens and closes using either compressed air (pneumatic) or electromagnetic (solenoid) actuation, and the standard G port threads make it compatible with most common fittings.
This valve features energy-efficient solenoid coils for precise actuation without wasting power. It has a maximum operating pressure of 10 bar, allowing a powerful release of gas or liquid in your pneumatic system.
As it's certified as safe for use in potentially explosive environments, the component is guaranteed not to spark or overheat. You'll often find this type of valve used in robotics, heavy-duty food processing and textile automation.

Features and Benefits

• Solenoid actuation type
• Aluminium body material
• G 1/4 connection port thread size
• 5/3 normally closed function
• Maximum flow rate of 1200 NL/min
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 2 bar
• Operating temperature range of -10°C to +60°C
• mounting style
• 4426 port configuration
• Five ports
• Single position
• Solenoid power consumption of 2 W, 3 VA
• Solenoid voltage of 12 V DC, 24 V AC/DC, 110 V AC, 220 V AC
