RS PRO 12 V dc Solenoid Valve Coil, Катушка

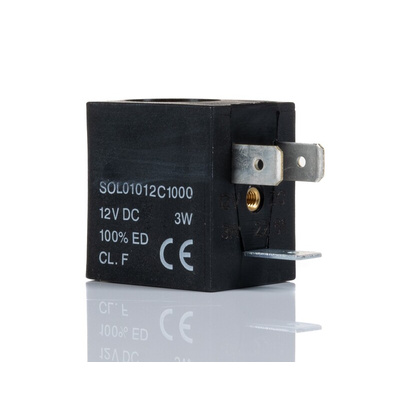

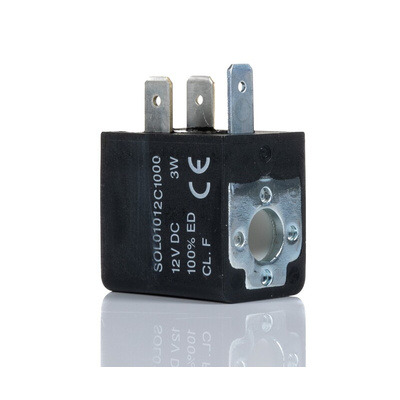

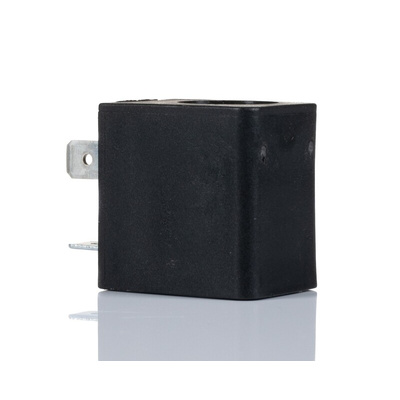

RS PRO 22mm Solenoid Valve Coil (12V DC)

An essential component of solenoid valves the RS PRO 22mm solenoid valve coil is designed to regulate the liquid and gas flow in pressure systems by converting electrical into magnetic energy activating the valve.
Constructed with a robust Technopolymer body resistant to impact and corrosion and a durable core and spring that with provide years of reliable service.
With a temperature range from -10°C up to +60°C the solenoid valve coil can withstand rises and drops in temperature during operation resulting in a hardwearing professional solenoid coil fit for harsh conditions

Features and Benefits

• Solenoid valve coil


• Continuous operation (100% duty cycle)


• Size of 22mm


• M5 port size


• Dimensions of 29.5 x 40.mm


• Supply voltage of 12 V DC


• Voltage tolerance of ±10 %


• Rating of 3W


• Brass body material


• IP65 rated


• Isolation class F


• Minimum operating temperature of -10°C


• Maximum operating temperature of +60°C


• DIN Form B Style

Standards and Approvals: CEI EN 60085, DIN 43650 B
