RS PRO 24 V ac Solenoid Valve Coil, Катушка

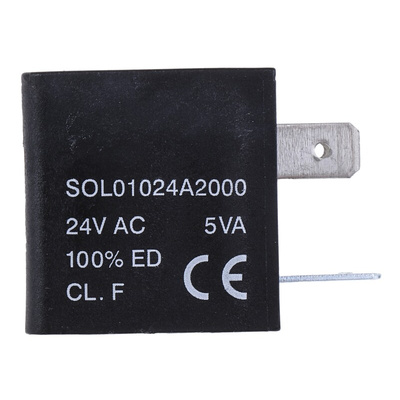

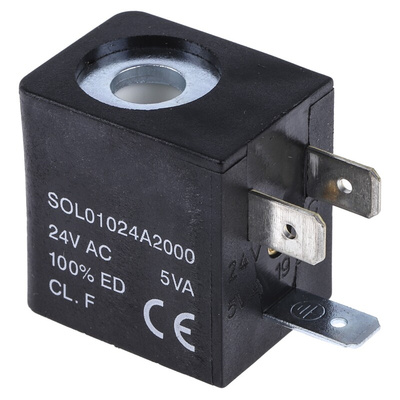

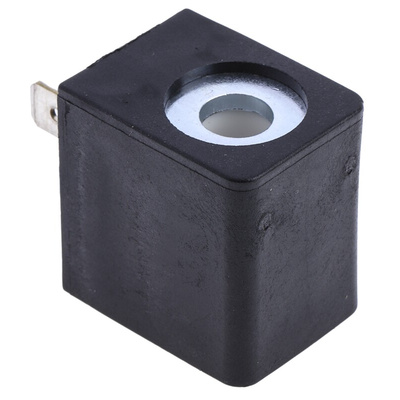

RS PRO Replacement Solenoid Coil, 24 V AC

Need to replace a worn-out solenoid coil in a pneumatic system? This one from RS PRO is designed just for that. Coils like this one are often used in service valves on water softening equipment or tank filling mechanisms.
The coil has an operating temperature range of -20°C to +50°C, so you can use it in a wide range of settings, from cold storage units to hot water plumbing setups. It meets American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic control standards, meaning the risk of electrostatic discharge is reduced. It's also Restriction of Hazardous Substances (RoHS) compliant, so it contains only minimal amounts of any harmful materials.

Features and Benefits

• Replacement solenoid coil
• Power consumption of 5 VA
• Power supply voltage of 24 V AC
• Operating temperature range of -20°C to +50°C
• Width of 22 mm
• Ingress protection (IP) rating of IP65
• Voltage tolerance of ±10%
• Duty rate (ED) of 100%
• F CEI EN 60085 isolation class
