RS PRO 5/2 Monostable Pneumatic Solenoid Valve - Solenoid G 1/4 12 V dc, 24 V ac/dc, 110 V ac, 220 V ac, Клапан

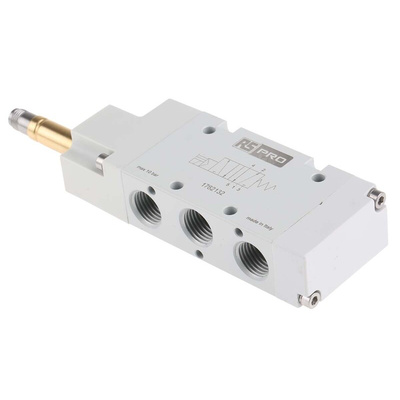

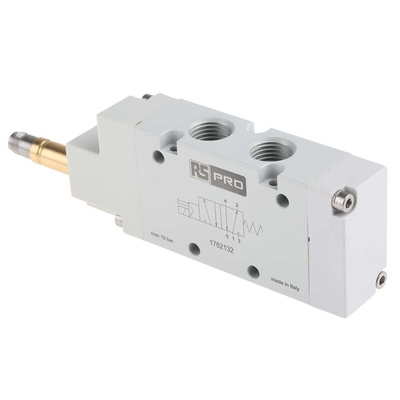

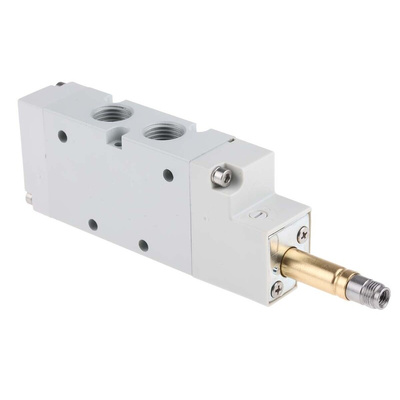

RS PRO 5/2 Monostable Pneumatic Control Valve Solenoid G 1/4 in

This monostable pneumatic control valve from RS PRO is used to control airflow within pneumatic systems. The valve is held in its home position by a spring until it is activated by an energy-saving solenoid. It's set up in a 5/2 configuration with five ports and two switching positions. Valves of this kind are often used to control double-acting cylinders.

The compact and energy-efficient valve is suitable for base mounting and fits onto a G standard 1/4 in thread. With a soft-seal spool design, it can deal with a high airflow of 1,200 litres per minute. The aluminium body is robust and lightweight.

This kind of valve is commonly used in applications including textile production, food processing and the automotive sector.

Features and Benefits

• Pneumatic control valve
• G 1/4 in connection port thread
• Monostable function
• Five ports
• Two positions
• Inline or manifold mount
• Solenoid/spring actuation
• Maximum flow rate of 1,200 L/min
• Maximum operating temperature of +60˚C
• Minimum operating temperature of -10˚C
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 2 bar
• Aluminium body
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
