RS PRO Handle Micro Valve, R 1/4, 6.35mm, Клапан

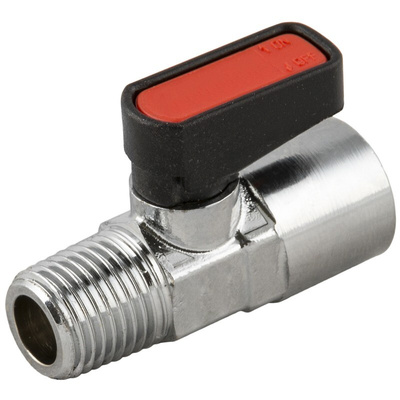

RS PRO Handle Pneumatic Manual Control Valve

Need a pack of simple, manually controlled valves for your pneumatic system? These RS PRO valves have a tapered male and female thread connection to create a pressure-tight join in your system. They're operated by a simple manual handle for opening and closing the ball valve.
The handle on each valve is black with a red insert for easy identification and is labelled with direction arrows for ease of use. The valves are strong and corrosion-resistant thanks to their chrome and nickel-plated brass construction. They're safe for use at temperatures ranging from -20ºC to +80ºC and at pressures up to 20 bar, so they can withstand harsh industrial conditions.
Use these valves to restrict or allow the flow of air in pneumatic tools, processing systems and industrial machinery. These units are often found in garages, food processing factories and chemical production plants.

Features and Benefits

• Brass body material
• R 1/4 connection port thread
• Red control button/switch colour
• Handle control mechanism
• Maximum flow rate of 1.4 m³/h
• Maximum operating pressure of 20 bar
• Minimum operating temperature of -20°C
• Maximum operating temperature of +80°C
• Two ports
• Thread size of 6.35 mm
• International Organisation for Standardisation (ISO) 7 thread standard
