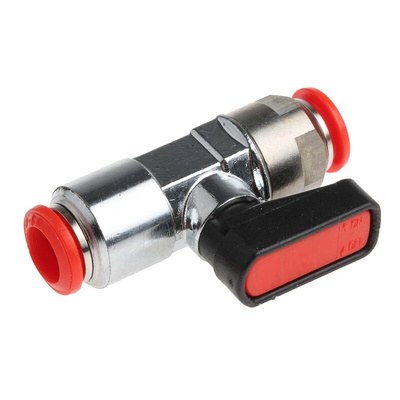

RS PRO Handle Micro Valve, Push in 8 mm, Клапан

RS PRO Handle Pneumatic Manual Control Valve

These RS PRO manual control valves come with two push-in ports for quick, tool-free installation. They're simple to operate thanks to the handle that allows you to turn airflow on and off. The red handle is embossed with direction arrows for ease of use.
The valves have a compact design for installing in small spaces or systems. They're made from brass that's plated with chrome and nickel for added durability and resistance to corrosion. You can use them at temperatures between -20°C and +80°C and at pressures up to 20 bar, so they're a good choice for heavy-duty industrial applications.
Manual control valves like these are useful for regulating or stopping the flow of air in pneumatic systems. You'll find them in the automotive, construction and food production industries.

Features and Benefits

• Brass body material
• 8 mm push-in connection port thread
• Red control button/switch colour
• Handle control mechanism
• Maximum operating pressure of 20 bar
• Minimum operating temperature of -20°C
• Maximum operating temperature of +80°C
• Two ports

RS PRO Datasheet

Pneumatic Linecard

RS PRO Pneumatics Range Overview
