RS PRO Push-in Fitting, Push In 8 mm to Push In 8 mm, Tube-to-Tube Connection Style, Угловой фитинг

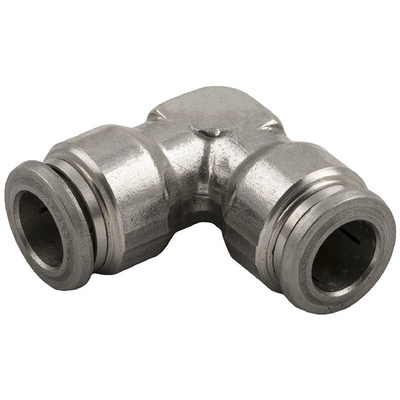

RS PRO Elbow Tube-to-tube Adaptor, Push-in 8 mm to Push-in 8 mm, 20 bar

Need an adaptor to connect pipes in a fluid system? These RS PRO elbow tube-to-tube connectors provide an easy-to-install, airtight seal to help keep your system running at peak performance.
They're made of American Iron and Steel Institute (AISI) 316L stainless steel which has high corrosion resistance, so they're suitable for storage or transportation of abrasive fluids. These versatile units perform well at different thermal conditions between -15ºC and +200ºC. They maintain their high tensile strength under pressures of up to 20 bar.
These adaptors' stainless steel composition makes them the ideal choice for storing and transporting food fluids and drinkable water. Because of their suitability to hygienic environments, they're commonly used in the medical and pharmaceutical industries.

Features and Benefits

• Angle of 90º
• Stainless steel body material
• Chemical-resistant
• Tube-to-tube connection style
• Connector A is an 8 mm push-in type
• Connector B is an 8 mm push-in type
• Food grade
• Maximum operating pressure of 20 bar
• Operating temperature range of -15°C to +200°C
• Elbow tube-to-tube adaptor pneumatic fitting type
• 1907/2006 (REACH), ISO 14743:2004, NSF/ANSI 169 and PED 2014/68/UE standards met
• No swivel connection
• Push-in 8 mm tube connection
