RS PRO Hose Connector Hose Tail Adaptor 1/4in 10mm ID, 14 MPa, 140 bar

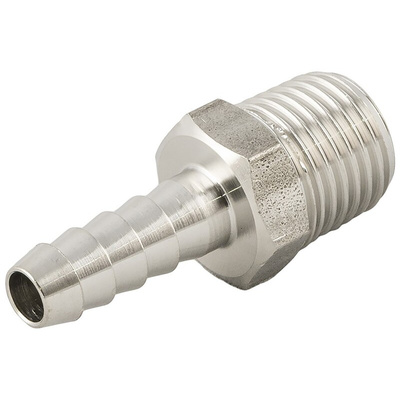

RS PRO Straight Stainless Steel Hose Connector, 1/4 in Male, 14 MPa, 140 bar

Use these RS PRO hose connectors in your pneumatic systems any time you need to join together two lengths of hose or join a hose to a separate tap or nozzle. They're designed to set up connections in a straight line with screw-fit BSPT (British Standard Pipe Thread) connectors that ensure a watertight seal.
These connectors are made from 316L type stainless steel. As well as being strong enough to handle high impacts and pressures, this material has a high level of molybdenum, which makes these components extremely rustproof. As they won't corrode, they're ideal for use with pressurised fluid systems. Their steel material is marine grade, making them suitable for coastal and offshore applications.
These components can handle pressures of up to 140 bar, so they're suitable for the most demanding of pneumatics applications. They're often found in the food and beverage industry, as well as in medical equipment.

Features and Benefits

• Body made from 316L stainless steel
• Male connector with male thread
• Thread size of 6.35 mm
• Threaded connection is 1/4 in
• Straight coupling type
• Hose inner diameter of 10 mm
• Maximum working pressure of 14 MPa, 140 bar
