RS PRO Quick Exhaust Valve, R 1/4 in Female x 10 bar, Threaded, Фитинг

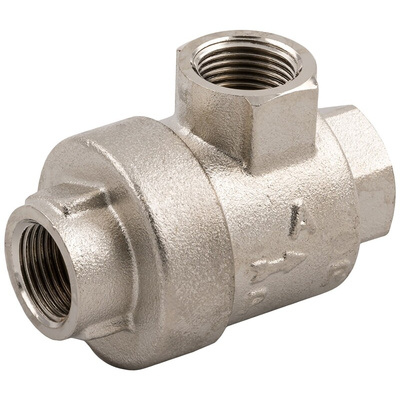

RS PRO Quick Exhaust Valve, R 1/4 in Female x 10 bar

When speed is important a quick exhaust valve can have a big impact on the performance of your pneumatic cylinders. By releasing the air from a cylinder into the atmosphere, the exhaust valve lowers the pressure resistance inside the cylinder and keeps it operating at top speeds.
There is a built-in silencer fitted into the exhaust valve, so you and nearby workers aren't disturbed by the noise caused by the sudden expulsion of air. To secure them to your cylinders, the valves have a threaded connection that is easy to fit and quick to remove when you no longer need the valve.
This unit is made of brass, which is resistant to corrosion and heat when exposed to air and moisture. This gives you a strong and sturdy valve that can stand up to the most demanding pneumatic systems.

Features and Benefits

• Brass body material
• Built-in silencer
• Threaded connection type
• Operating pressure range of 0.3 bar to 10 bar
• Minimum operating pressure of 0.3 bar
• Female threaded connection size of 1/4 in
• R threaded connection type
• R 1/4 in female threaded connections
