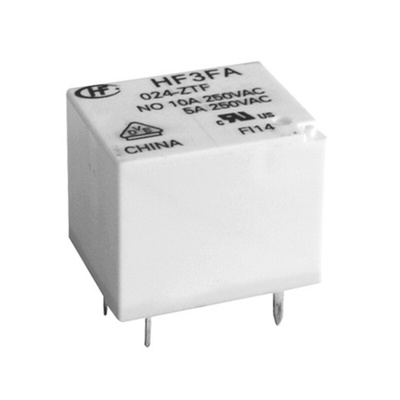

HF3FA/024-ZTF, Hongfa Europe GMBH PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT, Реле

Hongfa SPDT Non-Latching Relay

The Hongfa SPDT non-latching electromagnetic PCB mount relay is a subminiature high power latching relay. This relay is actuated with the help of a 5VDC coil and up to 5A DC/AC (NC), 10A DC/AC (NO) current through the coil to switch positions. It has a low mounting height of 15.5mm. This relay has silver alloy contacts. The contact arrangement used is 1 Form C type and has 2 coils latching. Forcibly guided contact is also used for guided protection.

Features and Benefits

• High power switching capacity up to 280W in case of DC
• Sensitive low coil power of 360mW
• Service temperature range between -40°C and 85°C
• Isolation voltage between coil and contact is 2.5KVAC
• High contact capacity 1A 30VDC
• Plastic sealed type
• Low power consumption

Applications

• Used as a control device
• Automotive industry

Datasheet
