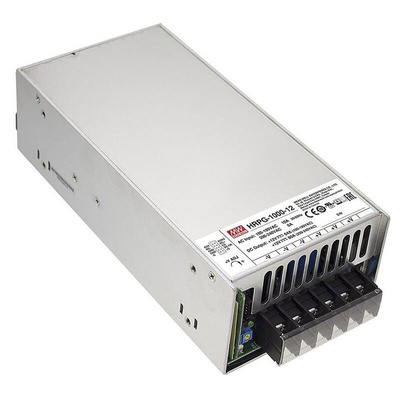

MEAN WELL Switching Power Supply, HRPG-1000-48, 48V dc, 21A, 1.008kW, 1 Output, 127 → 370 V dc, 90 → 264, Источник питания

1763461
Номер производителя: HRPG-1000-48Производитель: MEAN WELL
Цена за шт.
79677.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The primary feature for HRPG-1000 series is sharing the same mechanism with HRPG-600 series. Customers are able to replace 600W power supply with 1000W one without modifying system space. Other features include high efficiency up to 94%, wide working temperature range -40℃∼70℃(12V and 24V models especially have derating performances of 60℃), remote control functions (remote ON/OFF, remote sense, and DC OK signal), auxiliary power 5V@0.3A, no load power consumption, and parallel power up to 4000W. With various functions, HRPG-1000 series is suitable for industrial control, electric motor, communication systems and network equipment, etc.

90∼264VAC full range input
Built-in active PFC function
Forced air cooling by built-in DC fan
Current sharing up to 4000W
Remote control functions: remote ON/OFF, remote sense, DC OK signal
Auxiliary power 5V@0.3A
No load power consumption
Protections: short circuit, overload, over voltage, over temperature
Dimensions(L x W x H): 218 x 105 x 63.5mm
5 years warranty

AC-DC Single output Enclosed power supply with PFC, Output 48Vdc at 21A, 5Vdc at 0.3A auxiliary output, remote ON/OFF, remote sense, DC OK signal

Техническая спецификация
pdfDatasheet
Вес:
1.5кг
Входное напряжение:
127 → 370 V dc, 90 → 264 V ac
Выходной ток:
21A
Глубина:
63.5мм
Длина:
218мм
Количество выходов:
1
Максимальная температура:
+70°C
Минимальная температура:
-40°C
Мощность номинальная:
1.008кВт
Напряжение выходное:
48В пост. тока
Тип монтажа:
Монтаж на шасси
Тип упаковки:
Enclosed
Ширина:
105мм
Эффективность:
94%
