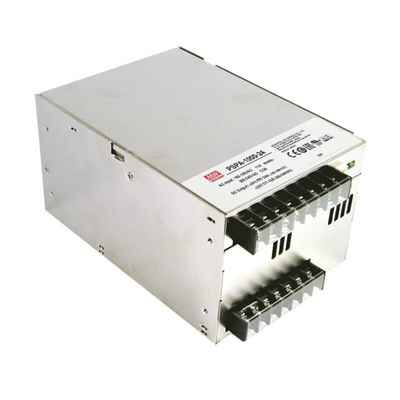

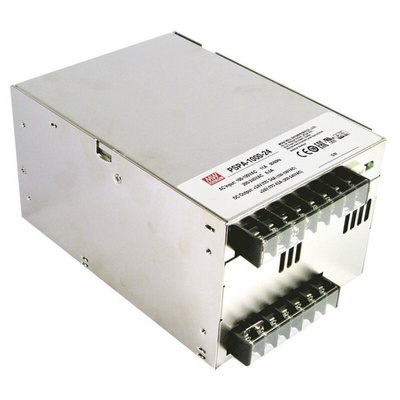

MEAN WELL Switching Power Supply, PSPA-1000-24, 24V dc, 42A, 1.008kW, 1 Output, 127 → 370 V dc, 90 → 264, Источник питания

Mean Well Switch Mode Power Supply

The Mean Well PSPA-1000 series 1008W single output AC to DC enclosed switch mode power supply has an output current rating of 42A at 24VDC. It has a universal input supply voltage rating ranging from 90VAC to 264VAC/127VDC to 370VDC.

Features and Benefits

Built-in remote sense function
Built-in active PFC function
Built-in remote ON-OFF control
Current sharing up to 4000W
Forced air cooling by built-in DC fan
High efficiency up to 94%
Operating temperature ranges between -20°C and 70°C
Overload
Overvoltage and over temperature protection
Short circuit
With DC OK single output

Applications

Burn-in facility
Communication systems and network equipment
Electric motor
Factory control or automation apparatus
Industrial control
Laser related machine
RF application
Test and measurement instrument

Certifications

EN55032 (CISPR32)/EN55011 (CISPR11)
EN61000-3-2
EN61000-3-3
EN61000-4-11
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8

Datasheet
