ABX00022, Arduino MKR Vidor 4000

Arduino MKR VIDOR 4000 I2c Abx00022

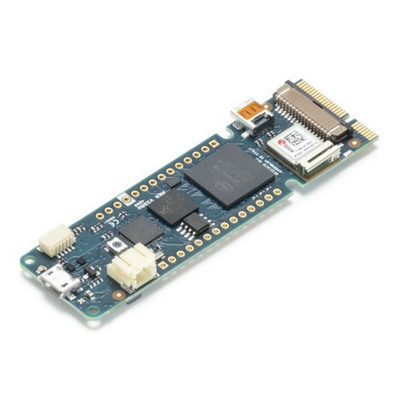

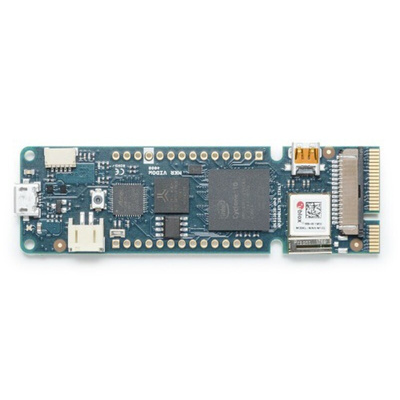

The Arduino MKR VIDOR 4000 is a new age product loaded with hardware and potential: an 8MB SRAM
a 2MB QSPI flash chip with 1 MB allocated for user applications. You can essentially create your controller board by using MKR VIDOR 4000. This includes the classic MKR interface on which all pins are driven both by SAMD21 and FPGA. It has a mini PCI Express connector with up to 25 user-programmable pins. Each pin can toggle at over 150MHz and can be configured for functions such as UARTs, (Q)SPI, high-resolution/high-frequency PWM, quadrature encoder, I2C, I2S, sigma-delta DAC, and more. It requires 3.3V operating voltage.

Features and Benefits

Communication between FPGA and the SAMD21 is seamless
FPGA contains 16K logic element
504KB of embedded RAM
56 18x18-bit HW multipliers for high-speed DSP
MIPI camera connector
Flash memory of 2MB
Clock speed range is between 48MHz and 200MHz

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
