TSX00083, Arduino, Proto Shield Rev3 (Uno Size)

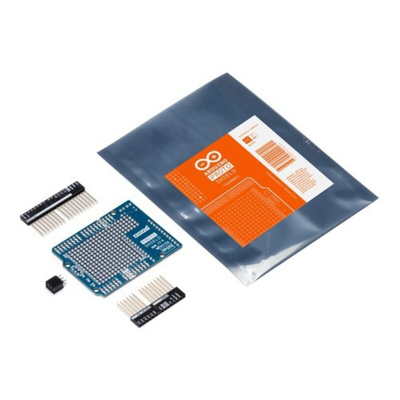

Arduino ProtoShield

The Arduino ProtoShield is an innovative tool that makes designing custom circuits easy. You can easily solder TH or SMD ICs on the prototyping area to test them with your Arduino board. The SMD area is designed for a maximum of 24 pins SOIC integrated circuit and the TH area contains a lot of space for the needed components around your project. You can even stick a mini breadboard (not included) on the protoarea for solderless operation. The proto area includes 2 power lines (IOREF and GND), 2 LEDs pads and SPI signals breakout pads for boards with SPI only on the ICSP header like zero.

Features and Benefits

1 Arduino pinout
1 ICSP Connector footprint
2 LEDs and resistor footprint
IOREF and GND power lines
SPI signals pads
24-pin SMD footprint (50 mils pitch)

Applications

Embedded development
Educational institutions
Robotics
Human machine interface
Electronics laboratories
Automation

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
