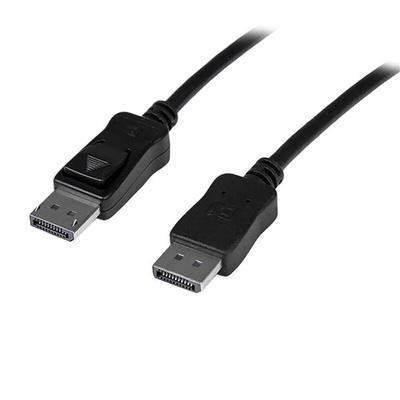

DISPL10MA, StarTech.com Male DisplayPort to Male DisplayPort, PVC Cable, 4K @ 30 Hz, 10m

DISPL10MA DisplayPort Cable

The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.

This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.

The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560´1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.

This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.

Features & Benefits

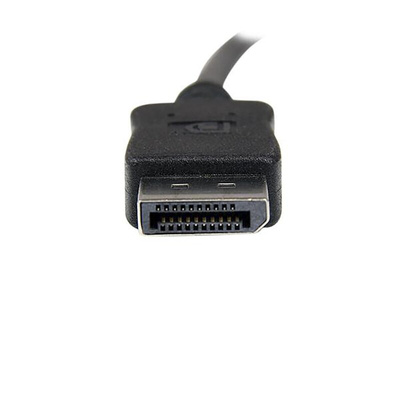

• 1x DisplayPort male connector

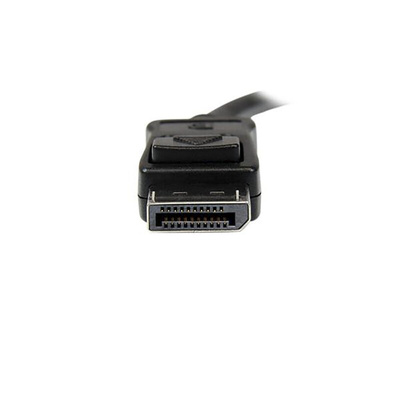

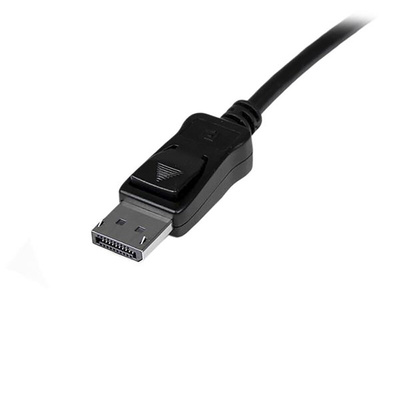

• 1x DisplayPort male connector with Latches
• Built-in, active amplifier circuitry
• Offers 30 feet (10 meters) in cable length
• Supports resolutions up to WQXGA (2560´1600)
• Supports the DPCP (DisplayPort Content Protection) standard in addition to HDCP
• Designed and manufactured to DisplayPort standards
• Thin, high-quality 32 AWG wire construction
• No DisplayPort signal loss, even at a distance of up to 30 feet (10 meters)
• Easier installations with enhanced cable flexibility
• Prevent accidental disconnections with latched connector

Applications

• Connecting a DisplayPort display to a PC or alternative DisplayPort source , over long distances, with no signal loss

What’s in the package?

10m Active DisplayPort® Cable - M/M

Note

This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.

FAQs

When should I use a longer video cable vs. a video extender?

You should only use video converters and extenders if it is absolutely necessary to do so. In many cases, most video converters and extenders are not necessary if you purchase the correct cable.

The following table lists the maximum length of cable for common video standards.
DisplayPort - 50 ft. (15.2m)
HDMI - 50 ft. (15.2m)
DVI - 50 ft. (15.2m)
VGA - 200 ft. (71m)

DISPL10MA Datasheet
