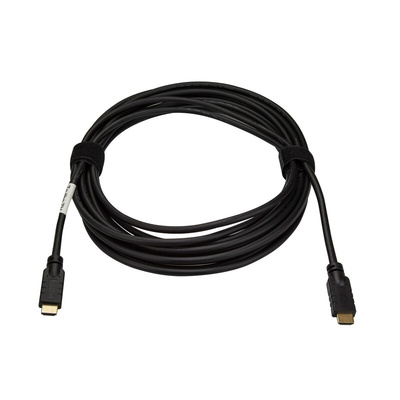

HD2MM10MA, StarTech.com 4K @ 60Hz HDMI 2.0 Male HDMI to Male HDMI Cable, 10m

HD2MM10MA 4k High Speed HDMI Cable

This CL2 HDMI cable is rated for in-wall installations. It also has a built-in active signal booster that allows for a connection distance of up to 30 feet (10 m) between your HDMI devices, with no signal loss. The cable is also backward compatible with previous HDMI specifications and will work with all of your existing HDMI devices.

Create 4K HDMI connections over longer distances

The cable’s built-in amplifier circuitry actively boosts the HDMI signal with no external power required. It supports longer connections than regular HDMI. The active cable also features a thinner wire construction for more flexibility, making it ideal for in-wall installations.

Experience the best that HDMI has to offer

This 4K HDMI cable supports resolutions of up to 4K@60Hz (3840x2160p) and bandwidths of up to 18Gbps. It also supports HDR (High Dynamic Range) for higher contrast ratio and vivid colours.

With higher resolutions, increased speeds, and sharper images, the cable provides the very best HDMI capabilities available today. It’s the perfect cable for creating the ultimate home-theater experience, for providing lifelike digital signage, or for delivering exceptional presentations.

The cable also supports up to 32 uncompressed digital audio channels to provide crystal-clear sound.

The HD2MM10MA is backed by a StarTech.com 2-year Warranty.

Features & Benefits

• Built-in, active amplifier circuitry
• CL2 fire rating
• Supports all HDMI 2.0 specifications
• Supports resolutions up to 4K@60Hz
• Provides connection distances up to 30 feet (10 meters)
• Supports up to 18Gbps bandwidth
• Supports HDR (High Dynamic Range) for expanded contrast ratio and colour accuracy
• Up to 32 audio channels with 1536Hz sampling rate
• Supports 21:9 cinema aspect ratio
• Delivers dual video streams to a single display
• Supports 3D video
• Delivers multi-stream audio to multiple users (up to 4)
• Supports BT.2020 colourimetry
• Supports Consumer Electronics Control (CEC) functions
• Backward compatible with earlier versions of HDMI

Applications

• For in-wall installations where CL2 fire rating is required
• Connect 4K/Ultra HD displays and devices
• Connect HDMI projectors in boardrooms, classrooms or conference rooms

What’s in the package?

HDMI cable

Note

This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please ensure that the HDMI connector labelled with "TV" is connected to the display, in order to ensure that the device and the HDMI source are connected properly.

FAQs

When should I use a longer video cable vs. a video extender?

You should only use video converters and extenders if it is absolutely necessary to do so. In many cases, most video converters and extenders are not necessary if you purchase the correct cable.

The following table lists the maximum length of cable for common video standards.
DisplayPort - 50 ft. (15.2m)
HDMI - 50 ft. (15.2m)
DVI - 50 ft. (15.2m)
VGA - 200 ft. (71m)

HD2MM10MA Datasheet
