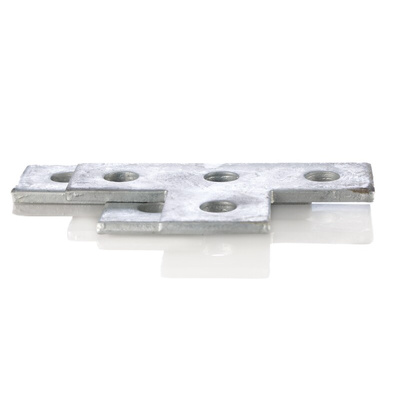

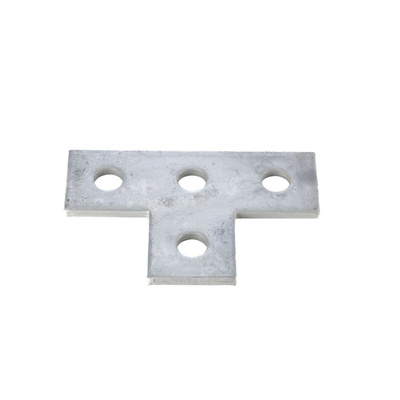

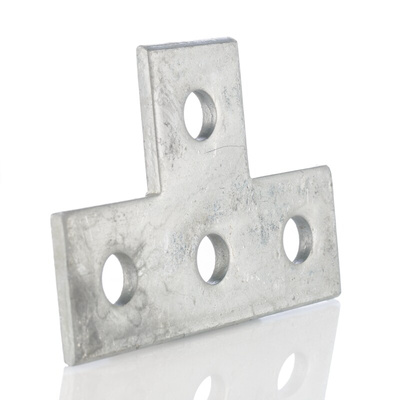

RS PRO Hot Dipped Galvanised T Shape Bracket 4 Hole, 14mm Holes, 80 x 120 x 5mm

RS PRO Flat Plate Fittings – T Shape Bracket

When it comes to flat plate fittings look no further than RS PRO. Our extensive range means we are sure to have your ideal solution. Flat plate fittings are essential accessories used during the installation process of channel/strut support systems. Here our offer focuses on the ’Rectangular’ shaped flat plate brackets which are available with 2,3 or 4 pre-drilled fixing holes.

Features and Benefits

• Designed to join channel sections together


• Rectangular shaped bracket


• 2,3 or 4 holes


• Materials: 316 stainless steel or hot dipped galvanised


• Ideal for internal and external applications

Why would you need them?

Flat plate fittings are vital accessories when creating a custom-made framework, shelving, or support system with Unistrut metal channels. They are available in the most common sizes and a choice in materials. These ’Rectangular’ brackets are used in conjunction with channel nuts & bolts to join several channel/ strut sections together. Once installed, form a strong union without the need for welding.

RS PRO Rectangular Bracket Variants - Hot Dipped Galvanised

• 2 Hole, 14mm Holes, 40 x 84 x 5mm; RS stock no: 176-6912


• 3 Hole, 14mm Holes, 40 x 126 x 5mm, RS stock no: 176-6922


• 4 Hole, 14mm Holes, 40 x 168 x 5mm, RS stock no: 176-6923


• 4 Hole, 14mm Holes, 80 x 120 x 5mm, RS stock no: 176-6924

RS PRO Rectangular Bracket Variant – Stainless Steel

• 3 Hole, 40 x 126mm, RS stock no: 221-6341

Applications

• Fabrication


• Shelving


• Lifting & Support Systems

RS PRO Datasheet
