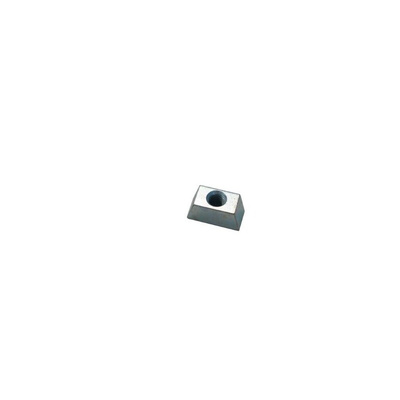

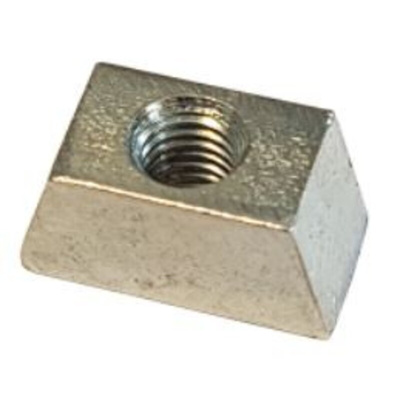

RS PRO Channel Nut, M12, Nut Base Dimensions 12 x 15mm

RS PRO Wedge Nuts

Brought to you from RS PRO, a selection of wedge nuts made from zinc-plated material and available in the most popular thread sizes. Wedge nuts or V nuts are commonly used with metal decking systems or composite floor decking. During installation, they are placed into the channel to provide a secure fixing for threaded rods, or bolts.

How do they work?

Wedge nuts are inserted on the inside of the channel and are designed to move down as the threaded rod or bolts are tightened. Once in place, a wedge nut acts as a lock and channel support mechanism.

Also known as;

• Vee Nuts


• V Nuts


• Channel Nuts

Features and Benefits

• Commonly used in the channel of decking


• Materials: Zinc plated


• Ideal for internal and external applications


• Thread sizes: M6 to M12

RS PRO Wedge Nuts Variants

• M6, 12 x 12 mm – RS stock no: 176-6911


• M8, 12 x 12 mm – RS stock no: 176-6928


• M10, 12 x 12 mm – RS stock no: 176-6948


• M12, 12 x 15 mm – RS stock no: 176-6949

Applications

• Channel Suspension


• Channel Decking


• Fixing and Anchor applications
