Siretta ZETA-N2-GPRS STARTER KIT

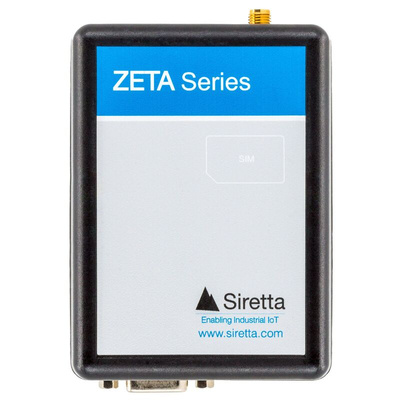

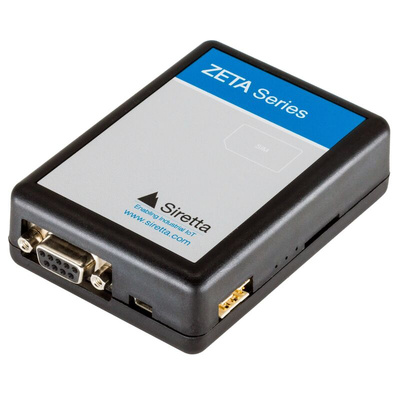

The ZETA-N2-GPRS is an industrial modem designed for connecting equipment to the 2G / GSM cellular network. It has a global coverage quadband GPRS class 10 cellular engine offering CSD fall back. The device offers a high level of functionality in a compact “plug and play ”housing and provides RS232 & USB serial data interfaces in addition to a 10-way GPIO connector which offers a secondary TTL serial port, general purpose IO and an ADC. It is ideal for integrating in to a wide range of IoT applications that require reliable and stable data connectivity

Features & Benefits

4 Bands GSM/GPRS: 850/900/1800/1900MHz
SMS text and PDU message mode
SIM Access Profile
SIM Application Tool Kit 3GPP TS 51.014
Control via standard AT commands 3GPP TS7.005.27.007
Extended AT command set
Serial port multiplexer 3GPP TS27.010
Embedded UDP/TCP/FTP/SMTP stack

Physical Interfaces

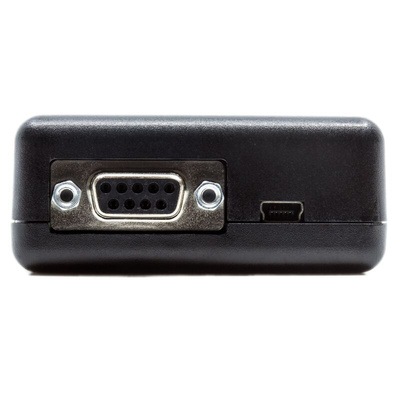

1 x RS232 serial port interface (5-wire)
1 x USB 2.0 FS

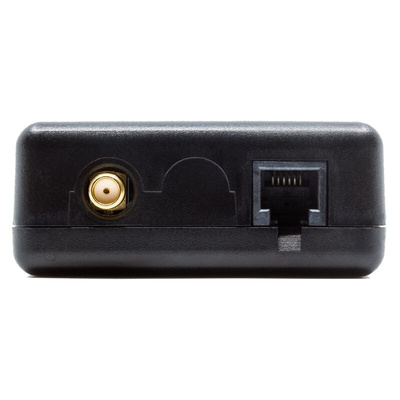

1 x RJ12 power connection (5 - 42V)
Nominal supply 12V
Power on & power off control
1 x SMA female cellular antenna connector
1 x SIM card reader (push-push) 3V, 1.8V

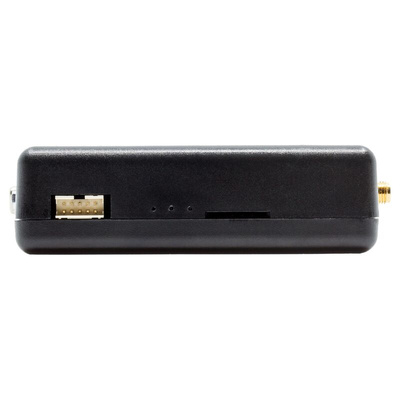

5 x GPIO (Input 0-42V, Output 0-3.3V)
1 x ADC (0-42V)
1 x RS232 secondary serial port (3-wire TTL)
External LED status indicators

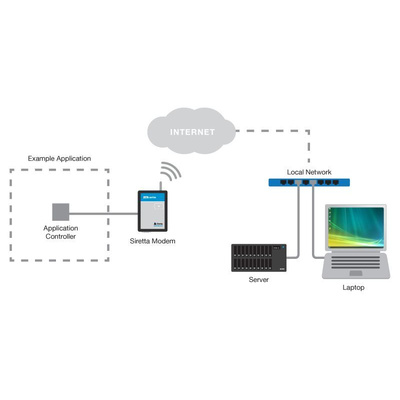

Applications

Access Control Systems
Car Parking Payment
Vending Machines
Agriculture
Tank Monitoring
Alarm Panels
Dialup Cellular Connectivity
Automatic Meter Reading

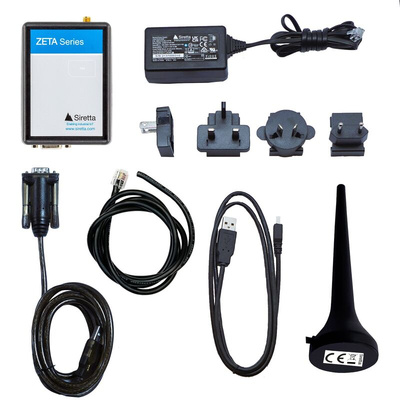

Accessories Included

1 x Cellular Antenna
1 x 1.5M RS232 - USB Cable
1 x 1M USB Mini B Cable
1 x RJ12 Power Pigtail
1 x Multi Head Power Adaptor

Certifications

CE
UKCA
RoHS
