HIF3MAW-60PA-2.54DSA(63), Hirose HIF3MAW Series Straight Through Hole PCB Header, 60 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded

Hirose PCB Header

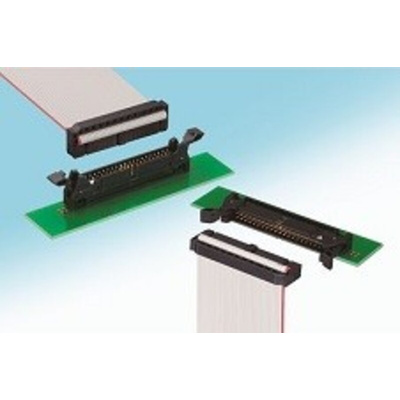

The Hirose PCB HIF3MAW series through-hole mount straight PCB header has 60-way contacts. It has a voltage rating of 200VAC, 500VDC and a current rating of 1A. The header has gold- plated brass contact material. A wide lock on the pin header and the long depth of the socket clamp makes the push/pull action easier. The body and protector of the socket can be detached, which makes cable assembly operation easier.

Features and Benefits

• Dual row
• Mis-insertion prevention mechanism
• Operating temperature ranges between -55°C and 85°C
• Pitch size is 2.54mm
• Termination method is solder
• Unshrouded header

Certifications

• MIL compliant
• UL certified

HIF3MW_Datasheet_EN
