DF12(4.0)-36DP-0.5V(86), Hirose DF12 Series Straight Surface Mount PCB Header, 36 Contact(s), 0.5mm Pitch, 2 Row(s), Shrouded

0.5mm Hirose SMT Board to Board Double Row Connectors - DF12 Series

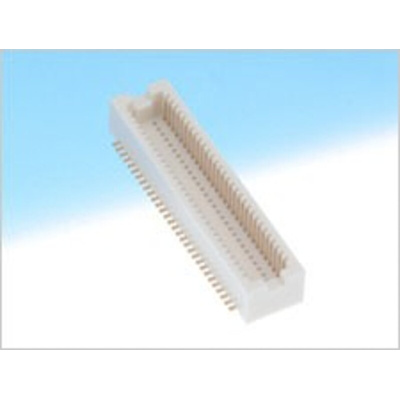

DF12 series straight, SMT mounting, ultra-miniature board to board, double row header and receptacle connectors with a 0.5mm contact pitch available with a variety of stacking heights. These 0.5mm PCB mount double row connectors have a UL94V-0 polyamide body and gold plated contacts.

Features and Benefits

• Available with PCB retention hardware and location posts
• Gold plated contacts

Note

DF12 SMT Header and Receptacle connector mated stacking heights:
DF12(3.0)-xxxx-xxxx have a stacking height of 3mm
DF12(3.5)-xxxx-xxxx have a stacking height of 3.5mm
DF12(4.0)-xxxx-xxxx have a stacking height of 4.0mm
DF12(5.0)-xxxx-xxxx have a stacking height of 5.0mm
If no figure in brackets is quoted then the stacking height will be 3.5 to 5.0mm.
These DF12 SMT board to board header connectors have board guide bosses and metal fittings for solder retention.

Hirose PCB Header

The Hirose PCB DF12 series surface mount straight PCB header has 36-way contacts. It has a voltage rating of 50VAC, 100VDC and a current rating of 300mA. The header has gold- plated phosphor copper contacts. The connector has the vacuum pick-up area to enable automatic mounting with embossed tape packaging. It is used in portable and handheld equipment.

Features and Benefits

• Dual row
• High reliability
• Operating temperature ranges between -45°C and 125°C
• Pitch size is 0.5mm
• Termination method is solder
• Unshrouded header
