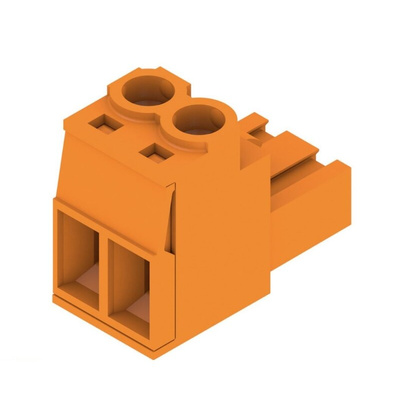

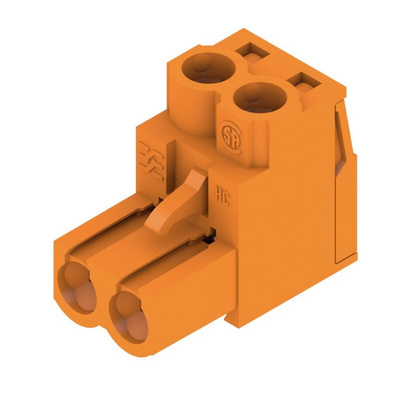

1943580000, Weidmuller 5.08mm Pitch 2 Way Right Angle Pluggable Terminal Block, Plug, Through Hole, Screw Termination

Weidmuller Pluggable Terminal Block, 23A Current Rating, 0.13 to 4mm² Wire Size Range - BL Series - BLZP 5.08HC/02/180 SN OR BX - 1943580000

Getting tied up wiring new devices into your system? Skip the tangle with this Weidmuller pluggable terminal block. As it simply slides into a header (255-8183), equipment hook-up is a breeze. Thanks to its tinned copper alloy contacts, the unit is highly conductive and resistant to corrosion to ensure reliable signal transfer. Linking components along walls is a cinch, thanks to the plug's right-angled body shape. The block's secure clamping screws mean you can trust your wiring stays connected through disruptive movement.

Features & Benefits

• PBT casing provides effective insulation for protection against electrical hazards
• Supports conductor sizes between 0.13 and 4mm² for versatility
• Current rating of 23A for use in demanding applications
• Long lifespan of at least 25 connection cycles for long-lasting machine links

Applications

• Telecommunications
• Food production
• Data centres
• Lighting networks

How do I know if I've connected this unit properly?

This block comes with polarised contacts, meaning it only clicks into place when you've lined its pins up correctly. This helps to minimise damage for a long service life.
