CMS-820, ABB ULYSCOM Communication Module For Use With CMS Series Circuit Monitoring System

Circuit Monitoring System (CMS)

The Circuit Monitoring System (CMS) is a ultra-compact and highperformance multichannel measurement system for AC and DC branch monitoring.
It represents a complete solution for monitoring electrical parameters in distribution panels, enabling power monitoring and energy efficiency analysis in buildings and critical power applications.

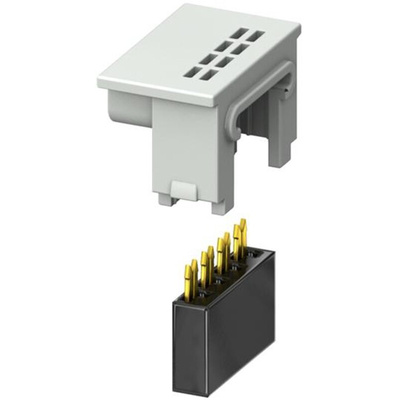

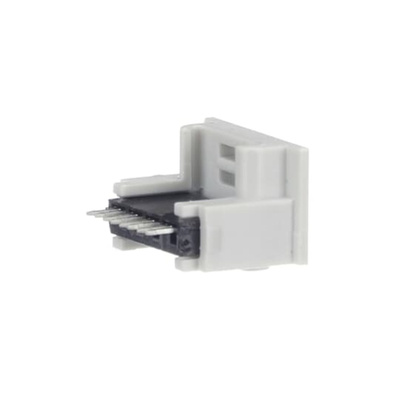

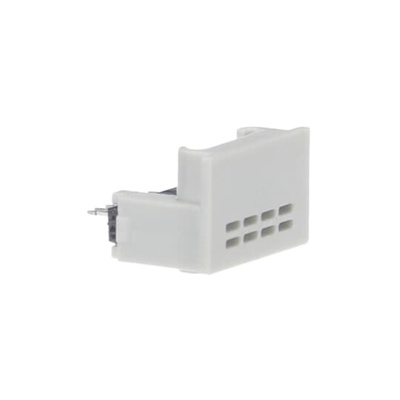

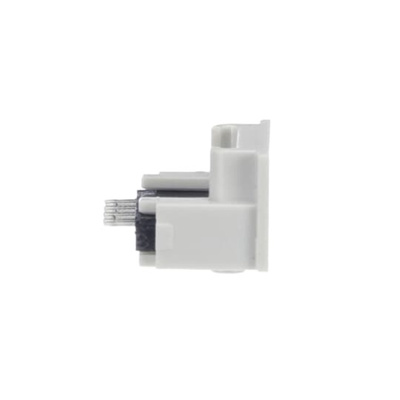

This component is part of the CMS (Circuit Monitoring Systems) familiy. CMS components are made to measure the final circuits (branches) of installations. Each monitoring system consists of a Control Unit and sensors with different measurement ranges and mounting possibilitiesTo create a bus connection between the Control Unit an the sensors, there are no any additional tools needed. The insulation displacement connectors can be connected by applying a small amount of pressure to the flat cable. Quick, easy and reliable.

Benefits

• Clear visibility of energy consumption at branch level

• Easy retrofitting and upgrades

• Maximum reliabilty and security thanks to encryption

• Simplified installation and commissioning

• One sensor for all types of currents.
