F204BS-125/0.5, ABB 4 Pole Residual Current Circuit Breaker, 125A F200, 500mA, Автоматический выключатель

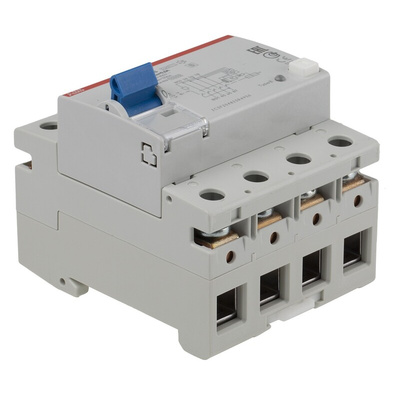

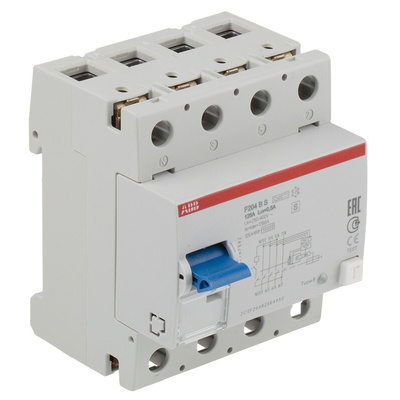

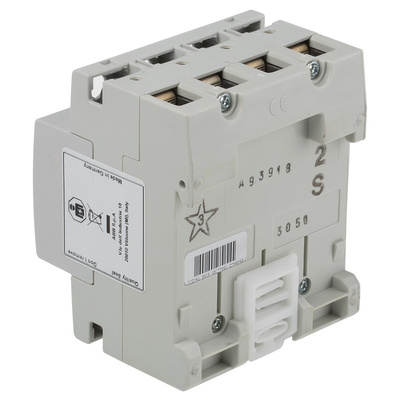

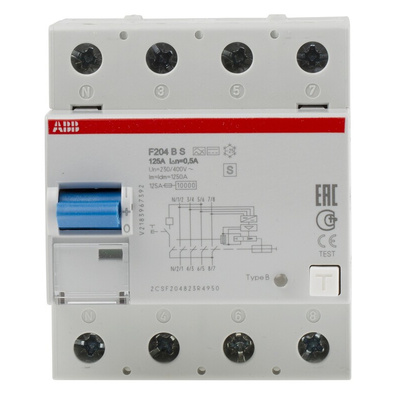

ABB F204 B S-125/0.5-L Residual Current Circuit Breaker

The RCCBs F200 series from ABB assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents and for installations where neutral on the left is needed.

The new F200 B RCCBs feature an innovative design that makes the products compact. Indeed, the two-pole device is the first one on the market that is built in just two modules and its compact dimensions ensure significant space savings in the switchboard. The new range of F200 B RCCBs is certified by the IMQ and VDE markings for operation in extremely harsh weather conditions up to 60 °C.

Features and Benefits:

• Compact and functional design
• Type B residual current devices are marked according to EN 62423
• Easy to connect and compatible with busbars thanks to the System pro M compact clamps
• Sole two-pole device in only two modules on the market
• VDE approved
• Green LED to monitor operation of the residual current circuit breaker
• Indication of the position of the contacts

Approvals & Certification:

• Declaration of Conformity - CE 9AKK106713A5602
• IEC/EN 61008
• RoHS: Following EU Directive 2011/65/EU
