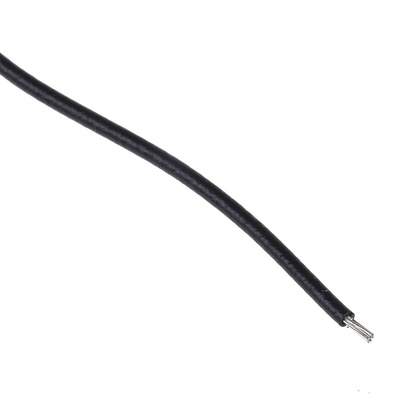

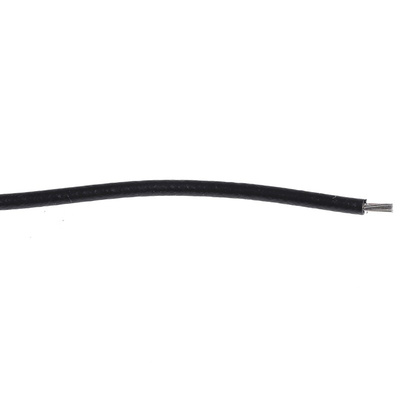

3050 BK005, Alpha Wire Hook Up Wire Series Black 0.23 mm² Harsh Environment Wire, 24 AWG, 7/0.20 mm, 30m, PVC Insulation, Провод

Belden Alpha Wire Black Harsh Environment Hook-Up Wire, 24AWG - Hook-Up Wire Series - 3050

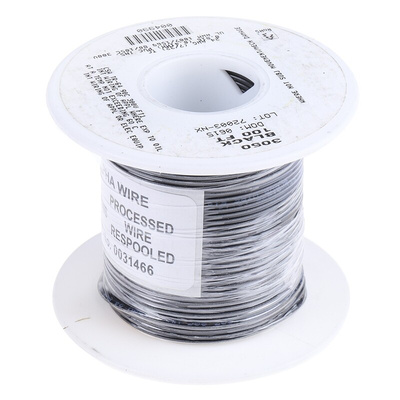

Use this robust hook-up wire from Belden's Alpha Wire range to supply electrical energy to your equipment in harsh settings. The wire's polyvinyl chloride outer sheath is self-extinguishing, which means it'll help to minimise the spread of flames in the event of a fire. PVC is also resistant to impact and abrasion, making it a practical choice for heavy-duty industrial use. It comes supplied in a reel for easy handling. This means you can simply cut the length you need and rewind the excess back onto the reel.

Features & Benefits

• Compact outer diameter of 1.42mm for space efficiency in small enclosures
• Voltage rating of 300V for use in low-voltage applications
• Corrosion-resistant tinned copper conductors for a reliable connection
• Black colour-coded sheath for easy identification

Applications

• Control panels
• Switchgears
• High-temperature ovens

What's the temperature tolerance of this hook-up wire?

This hook-up wire can function within a temperature range of -40°C to +105°C. This means you can use it in extreme industrial environments.
