16014, Volkel Go No-Go Plug Gauge M4

Volkel Go No-Go Plug Gauge

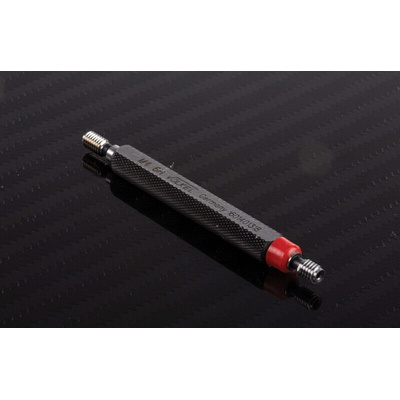

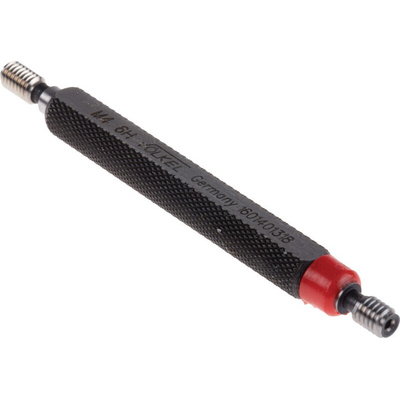

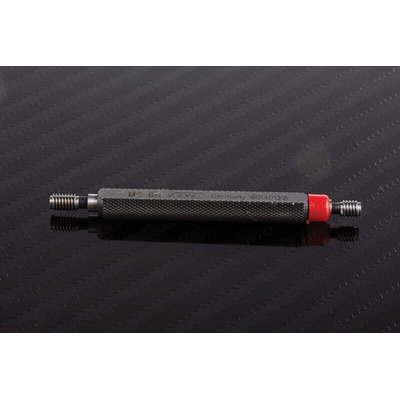

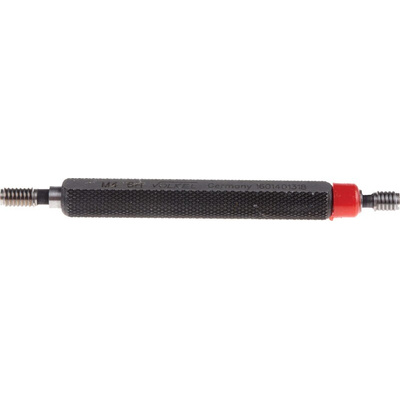

The Volkel Go No-Go plug gauge M4x0.7 is a combination of go and No-Go plug gauge. The scrap side of this thread plug gauge is marked with a red ring. It is calibrated at a measurement laboratory using IAC thread scanners. This gauge must screw into the part by hand more than two threads. If unable to do so, the thread does not meet the requested standards. The reference temperature for parts and gauge is 20°C. It is made of high-quality raw material. This gauge is mostly used as an inspection tool.

Features and Benefits

• Metric measurement system
• 6H tolerance
• High durability and reliability
• Compact size and rugged
• Easy to use
• Accurate
• Double ended gauge

Certifications

• ISO1502
• DIN13

Certifications

• ISO1502
• DIN13

Datasheet plug and ring gauges
