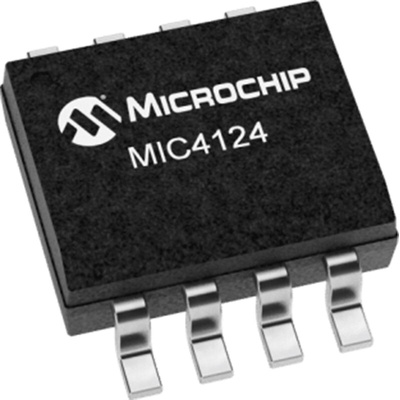

Microchip MIC4124YME, MOSFET 2, 3 A, 20V 8-Pin, SOIC

The MIC4123/4124/4125 family are highly reliable BiCMOS/DMOS buffer/driver/MOSFET drivers. They are higher output current versions of the MIC4126/4127/4128, which are improved versions of the MIC4426/4427/4428. All three families are pin-compatible.

Reliable, low-power bipolar/CMOS/DMOS construction
Latch-up protected to >200mA reverse current
Logic input withstands swing to -5V
High 3A peak output current
Wide 4.5V to 20V operating range
Drives 1800pF capacitance in 25ns
Reliable, low-power bipolar/CMOS/DMOS construction
Latch-up protected to >200mA reverse current
Logic input withstands swing to -5V
High 3A peak output current
Wide 4.5V to 20V operating range
Drives 1800pF capacitance in 25ns
Short <50ns typical delay time
Delay times consistent with in supply voltage change
Matched rise and fall times
Low equivalent 6pF input capacitance
Low supply current
3.5mA with logic 1 input
350μA with logic 0 input
Low 2.3Ω typical output impedance
